Description

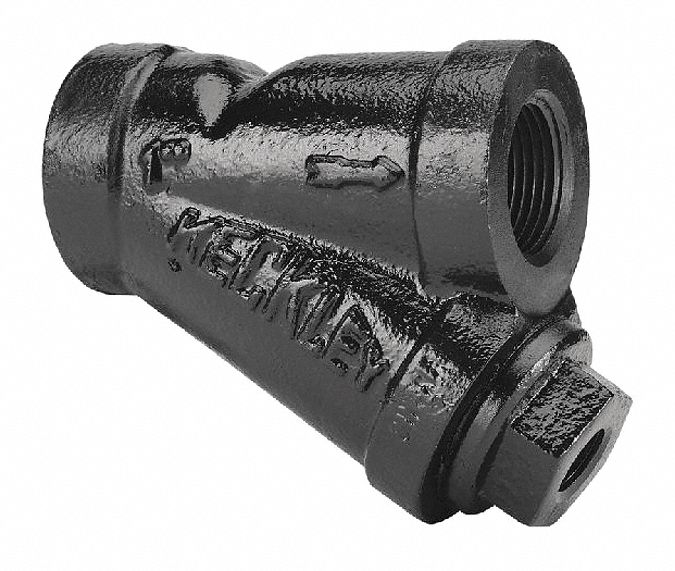

Y Strainer Pipe Size 1/4 in Maximum Pressure at 100 deg F 400 psi Length 3 1/4 in Height 3 1/4 in Blow Off Port 1/4 in Screen Material 304 Stainless Steel Mesh Size 20 mesh Housing Material Cast Iron Class 250 Cv Flow Factor 0.
7 gpm For Use With Gas Oil Steam Water Includes Screen Yes Maximum Pressure 250 psi @ 406 Degrees F WSP 400 psi @ 150 Degrees F WOG Maximum Temperature 406 Degrees F Micron Rating 840 micron Port 1 Connection Size 1/4 in Port 1 Connection Type NPT- Alternate Part Numbers- 45AM10- 143THYCIM20M34FTIB7- 45AM10
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
1/43THY-CIM20M34-FTI-B7
Manufacturer Part Number:
KECKLEY
