Description

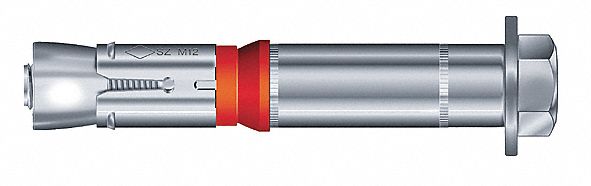

Wedge Anchor Bolt System of Measurement Metric Anchor Diameter 24 mm Thread Size M16 Overall Length 182 mm Thread Length Not Applicable Eyelet Hole Size Not Applicable Material Steel Material Grade/Class Class 8.
8 Finish Zinc Plated Compatible Material Concrete Drill Bit Size 24 mm Minimum Installation Depth 120 mm Minimum Material Thickness 203 13/64 mm Ultimate Shear Strength (4 000 psi Concrete) 38 920 lb Ultimate Tension Strength (4 000 psi Concrete) 14 057 lb Nut Width 24 mm
