Description

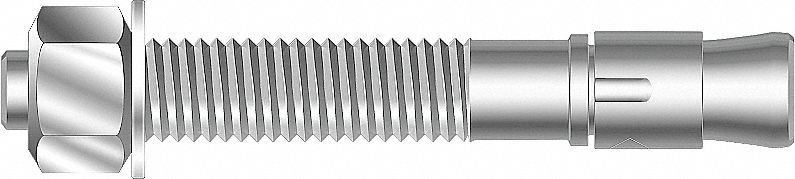

Wedge Anchor System of Measurement Inch Anchor Diameter 5/8 in Thread Size 5/8 In.
-11 Overall Length 5 in Thread Length 3 1/4 in Eyelet Hole Size Not Applicable Material Steel Material Grade/Class Grade 5 Finish Zinc Yellow Compatible Material Concrete Drill Bit Size 5/8 in Minimum Installation Depth 2 3/4 in Minimum Material Thickness 4 in Ultimate Shear Strength (4 000 psi Concrete) 9 659 lb Ultimate Tension Strength (4 000 psi Concrete) 5 556 lb Nut Width 0.
9375 in
Features
Extra Information
Processing Time:
2-3 days
