Description

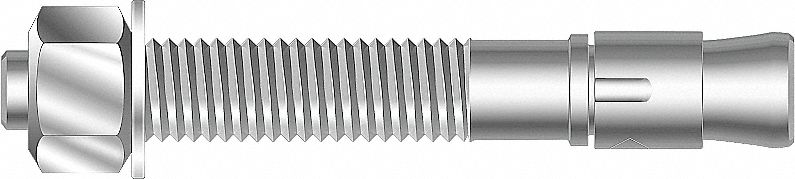

Wedge Anchor System of Measurement Inch Anchor Diameter 3/8 in Thread Size 3/8 In.
-16 Overall Length 5 in Thread Length 4 in Eyelet Hole Size Not Applicable Material Steel Material Grade/Class Grade 2 Finish Zinc Plated Compatible Material Concrete Drill Bit Size 3/8 in Minimum Installation Depth 1 5/8 in Minimum Material Thickness 4 in Ultimate Shear Strength (4 000 psi Concrete) 3 151 lb Ultimate Tension Strength (4 000 psi Concrete) 5 203 lb Nut Width 0.
5625 in
