Description

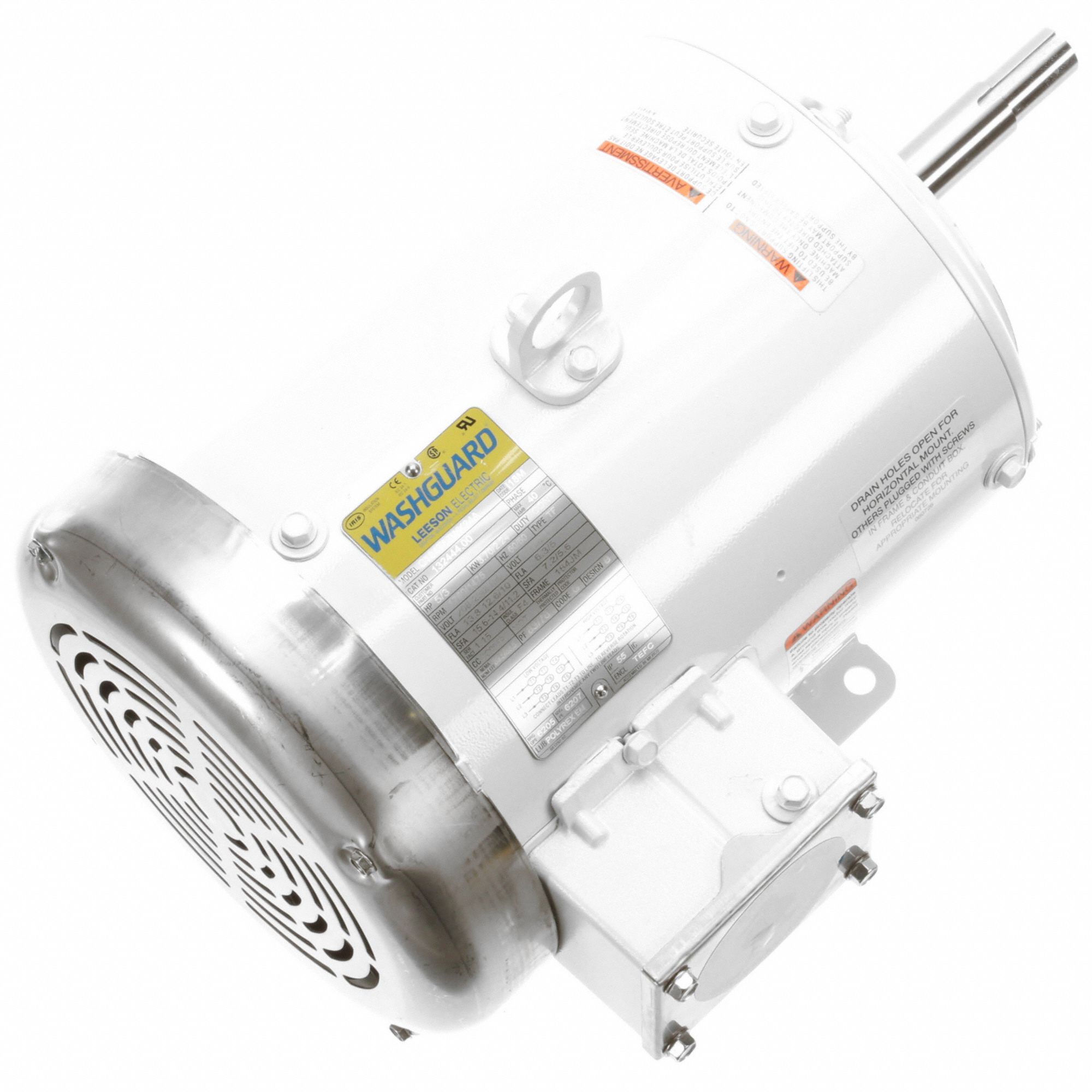

Washdown Pump Motor Three Phase Motor Design 3-Phase 5 HP Nameplate RPM 1 760 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 13.
8-12.
6/6.
3 A 184JM Frame Usable @ 208V Yes 60 Hz Motor Service Factor 1.
15 Motor Thermal Protection None Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Rigid Base Motor Mounting Position Horizontal- Alternate Part Numbers- 798GC8- 13244400
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
MX
Manufacturer Name:
132444
Manufacturer Part Number:
LEESON
