Description

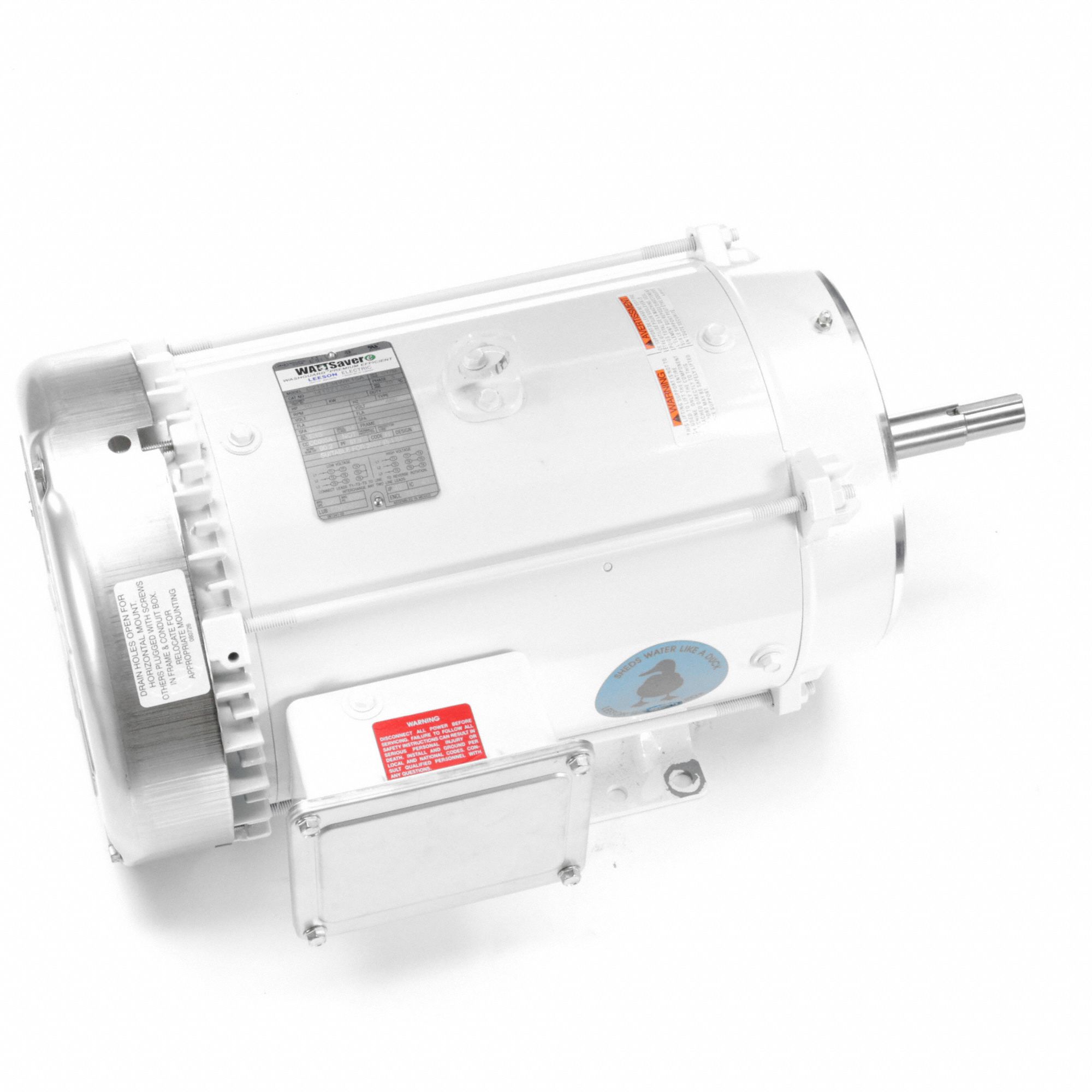

Washdown Pump Motor Three Phase Motor Design 3-Phase 10 HP Nameplate RPM 3 525 No of Speeds 1 Voltage 230/460V AC Full Load Amps 23.
6/11.
8 A 215JM Frame 60 Hz Motor Service Factor 1.
15 Motor Thermal Protection None Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Motor Frame Material Rolled Steel- Alternate Part Numbers- 798GD4- 14127100
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
MX
Manufacturer Name:
141271
Manufacturer Part Number:
LEESON
