Description

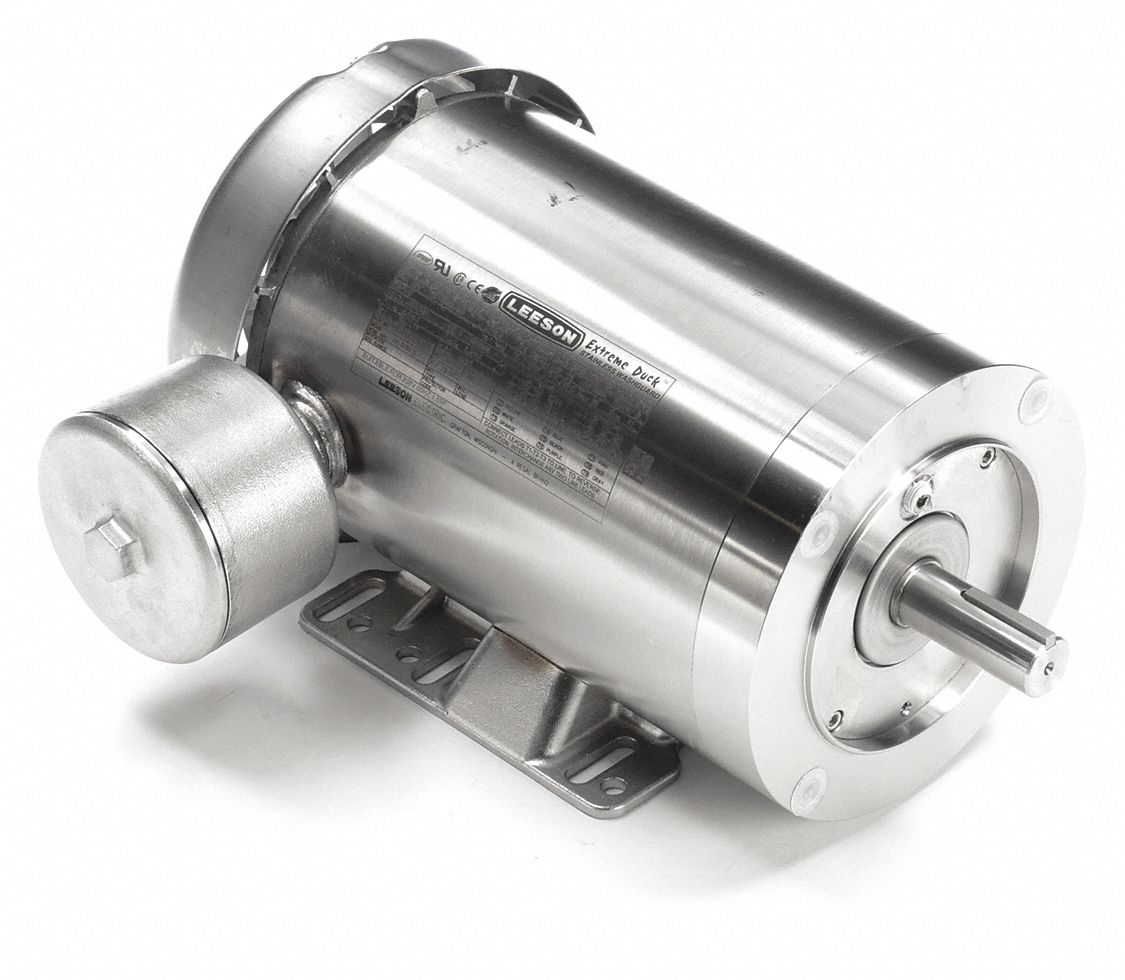

Washdown Motor Three Phase Motor Design 3-Phase 2 HP Nameplate RPM 1 745 No of Speeds 1 Voltage 230/460V AC Full Load Amps 2.
0 A 145TC Frame Usable @ 208V No Usable @ 200V No 60/50 Hz Hz Motor Service Factor 1.
15 Motor Thermal Protection None Ins.
Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CCW CW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
