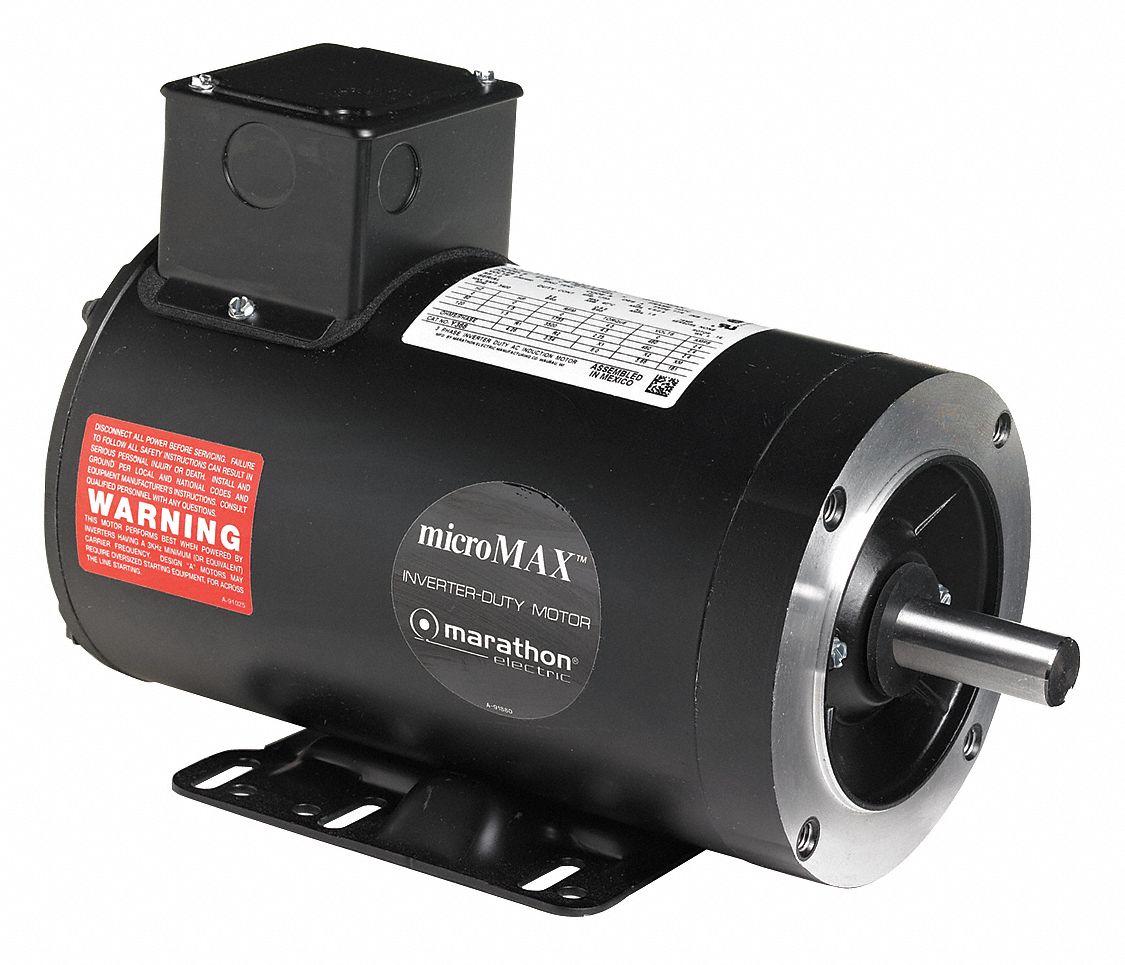

Vector Motor Three Phase Motor Design 3-Phase 1/3 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 230V AC Full Load Amps 1.
2 A 56C Frame Torque 1 ft-lb Max Speed 5 400 RPM Speed Range 1 000 1 Usable @ 208V No Usable @ 200V No 60 Hz Hz Max Operating Frequency 120 Hz Motor Service Factor 1 Motor Thermal Protection None Ins.
Class H Max Ambient Temp 104 Degrees F Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCW
