Description

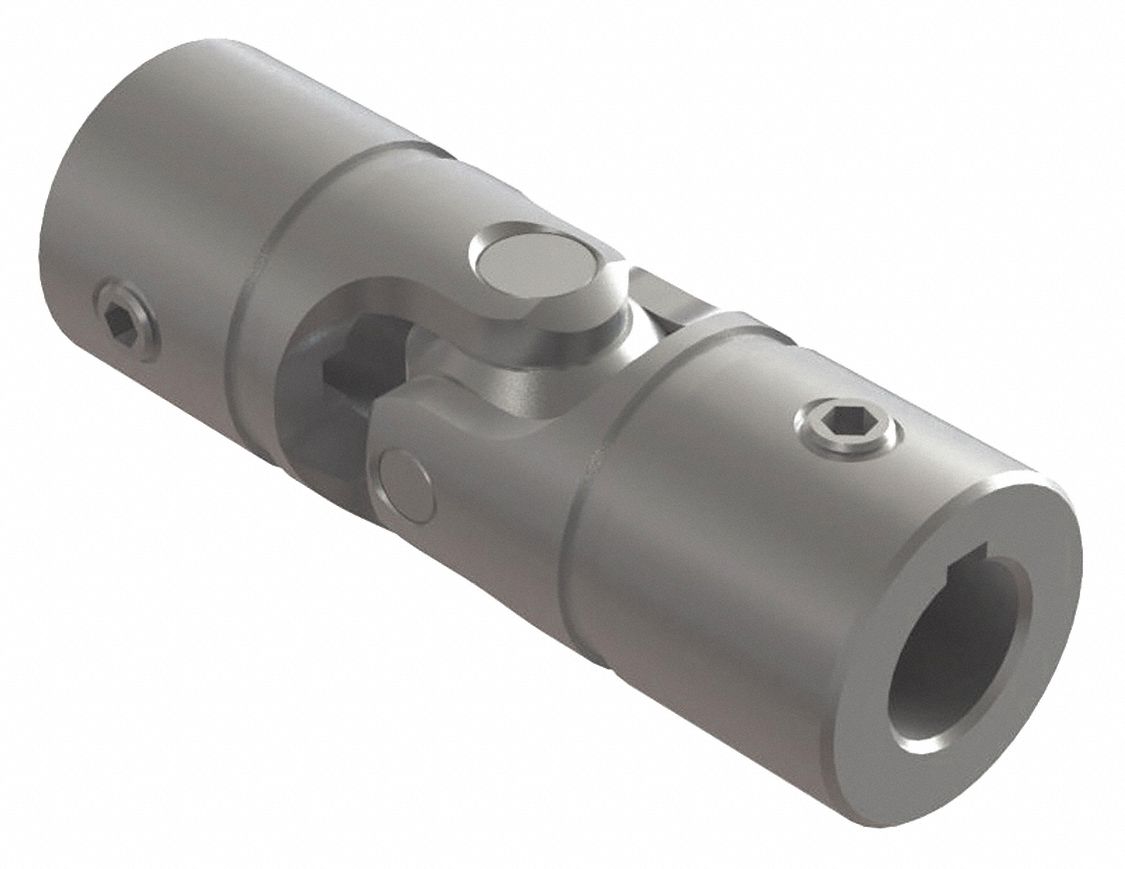

Universal Joint Coupling Size Not Applicable Overall Length 85.
7 mm Maximum Bore Diameter 12 mm Maximum Operating Angle 45 Degrees Yoke Length 42.
9 mm Boot Material Not Applicable Bore Diameter 12 mm Number of Joints Single Joint Diameter 25 3/8 mm Maximum Torque 35 N-m U-Joint Material Stainless Steel Joint Type Pin Block Booted No Outside Diameter 25.
4 mm Keyway Depth 1.
9 mm Keyway Width 4 mm Length through Bore 30.
2 mm Break Torque 178 N-m System of Measurement Metric
