Description

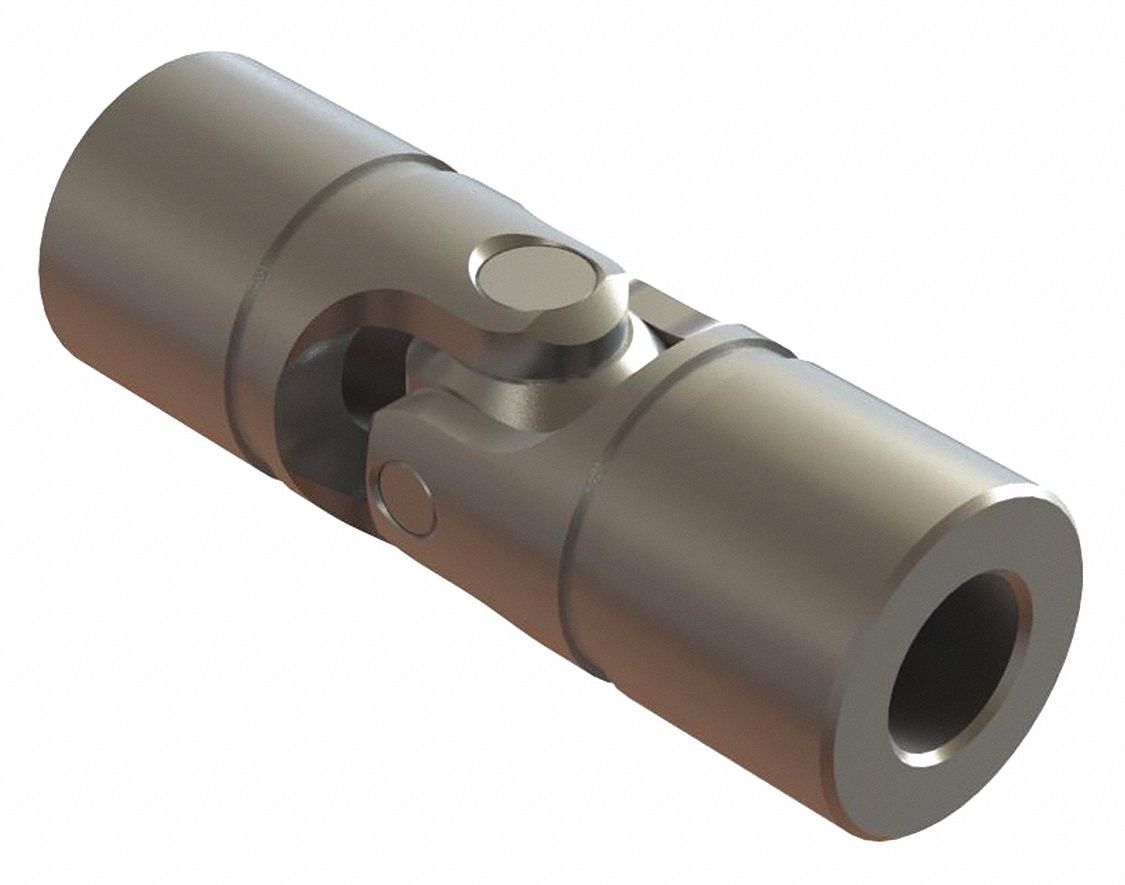

Universal Joint Coupling Size Not Applicable Overall Length 140 mm Maximum Bore Diameter 35 mm Maximum Operating Angle 45 Degrees Yoke Length 70 mm Boot Material Not Applicable Bore Diameter 35 mm Number of Joints Single Joint Diameter 63 1/2 mm Maximum Torque 723 N-m U-Joint Material Alloy Steel Joint Type Pin Block Booted No Outside Diameter 63.
5 mm Keyway Depth Not Applicable Keyway Width Not Applicable Length through Bore 34.
1 mm Break Torque 3 615 N-m- Alternate Part Numbers- 55YE47- UJHD2500x35140
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
US
Manufacturer Name:
UJ-HD2500x35-140
Manufacturer Part Number:
BELDEN
