Description

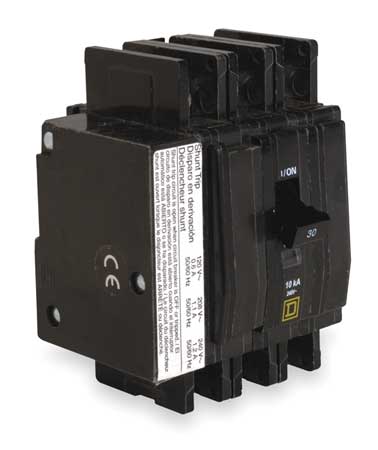

SQUARE D QOU3601021 - UNIT MOUNT CIRCUIT BREAKER QOU 3P 60A - UNIT MOUNT CIRCUIT BREAKER CIRCUIT BREAKER TYPE SHUNT TRIP NUMBER OF POLES 3 60 AMPS AC VOLTAGE RATING 240VAC DC VOLTAGE RATING 48VDC AIR @ 120VAC 10KA AIR @ 240VAC 10KA AIR @ 48VDC 5KA PHASE 3 TERMINAL CONNECTION SLOTTED BOX LUG (LINE AND LOAD) SERIES QOU MIN WIRE SIZE 14 AWG MAX WIRE SIZE 2 AWG LENGTH 4.
05 IN.
WIDTH 3 IN.
DEPTH 2.
98 IN.
STANDARDS UL CSA HACR IEC - EQUAL TO G3370595
Features
Specs
Manufacturer Name:
SQUARE D
Manufacturer Part Number:
QOU3601021
