Description

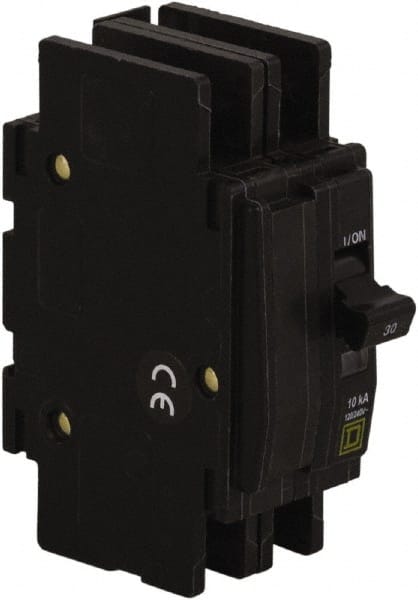

SQUARE D QOU230 - UNIT MOUNT CIRCUIT BREAKER QOU 2P 30A - UNIT MOUNT CIRCUIT BREAKER CIRCUIT BREAKER TYPE STANDARD NUMBER OF POLES 2 30 AMPS AC VOLTAGE RATING 120/240VAC DC VOLTAGE RATING 48VDC AIR @ 120VAC 10KA AIR @ 240VAC 10KA AIR @ 48VDC 5KA PHASE 1 TERMINAL CONNECTION SLOTTED BOX LUG (REVERSIBLE LINE AND LOAD) SERIES QOU MIN WIRE SIZE 14 AWG MAX WIRE SIZE 2 AWG LENGTH 4.
05 IN.
WIDTH 1.
5 IN.
DEPTH 2.
98 IN.
STANDARDS UL CSA HACR IEC - EQUAL TO G0996633
Features
Specs
Manufacturer Name:
SQUARE D
Manufacturer Part Number:
QOU230
