Product Overview

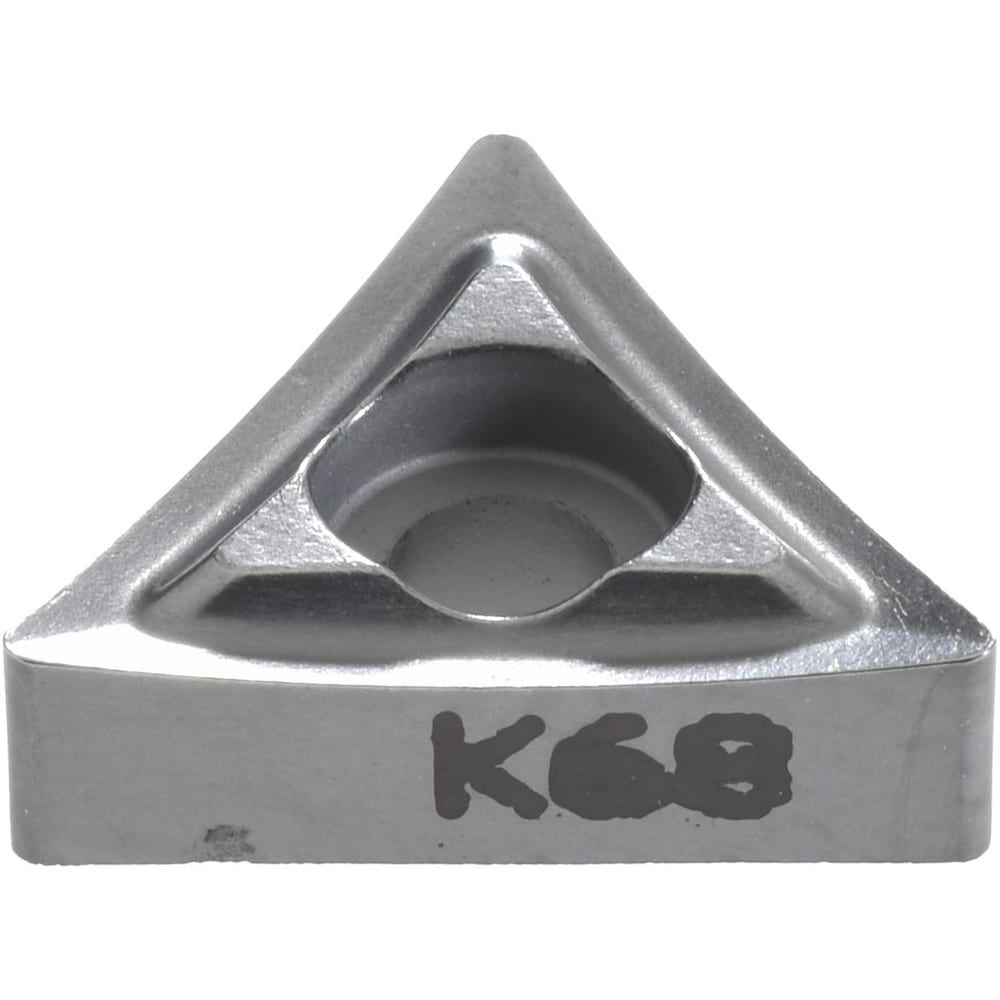

The Bright/No Finish T-Triangle Series Screw-On inserts are precision-engineered for various machining applications, including roughing operations in materials such as cast iron, aluminum, stainless steel, and super alloys. With a neutral insert hand, these carbide inserts provide exceptional wear resistance and toughness, making them ideal for high-performance machining tasks.
Key Features
- Insert Material: Made from durable carbide.
- Design Type: T-shaped triangular insert for improved cutting efficiency.
- Coating/Finish: Bright/uncoated surface for enhanced cutting performance.
- Insert Hand: Neutral hand for versatile machining applications.
- Included Angle: 60 degrees for optimal chip formation.
- Negative Side Clearance: Designed to reduce friction during operation.
- Multi-Material Capability: Effective for cast iron, aluminum, stainless steel, and super alloys.
Specifications
| Specification | Details |
|---|---|
| ANSI Insert Code | T221 |
| ISO Insert Code | T110304 |
| Insert Style | T |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Length (Decimal Inch) | 0.4331 |
| Insert Holding Method | Screw |
| Manufactures Catalog Number | 1161207 |
| Country of Origin | UNITED STATES |
Features
Specs
Country of Origin:
US
Manufacturer Name:
T221P K68
Manufacturer Part Number:
Turning Insert
