Description

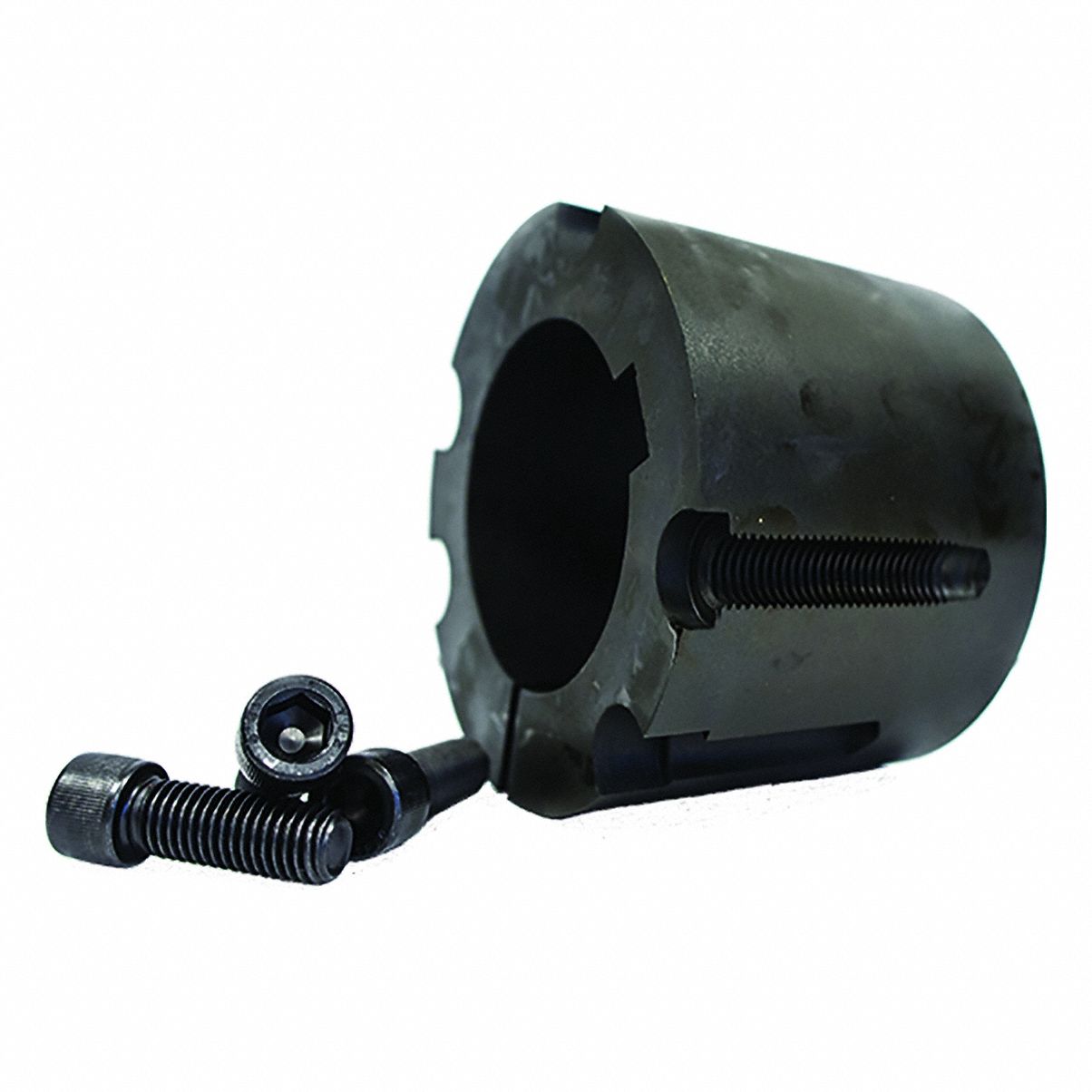

Taper Lock Bushing Bushing Type Taper Lock Bore Bushing Series 3020 Bore Diameter 65 mm Length 2 in Bolt Circle Diameter 4 in Bolt Size Not Applicable System of Measurement Metric Fastener Tightening Torque Capacity 24 000 in-lb Flange Type Flangeless Flange Width Not Applicable For Shaft Type Keyed Includes (2) Set Screws Keyway Height 4.
6 mm Keyway Width 18 mm Length Less Flange Not Applicable Material Steel Overall Diameter 4.
25 in Taper 8 Degrees - Alternate Part Numbers- 813AC7- 3020X65MM
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
3020X65MM
Manufacturer Part Number:
APPROVED VENDOR
