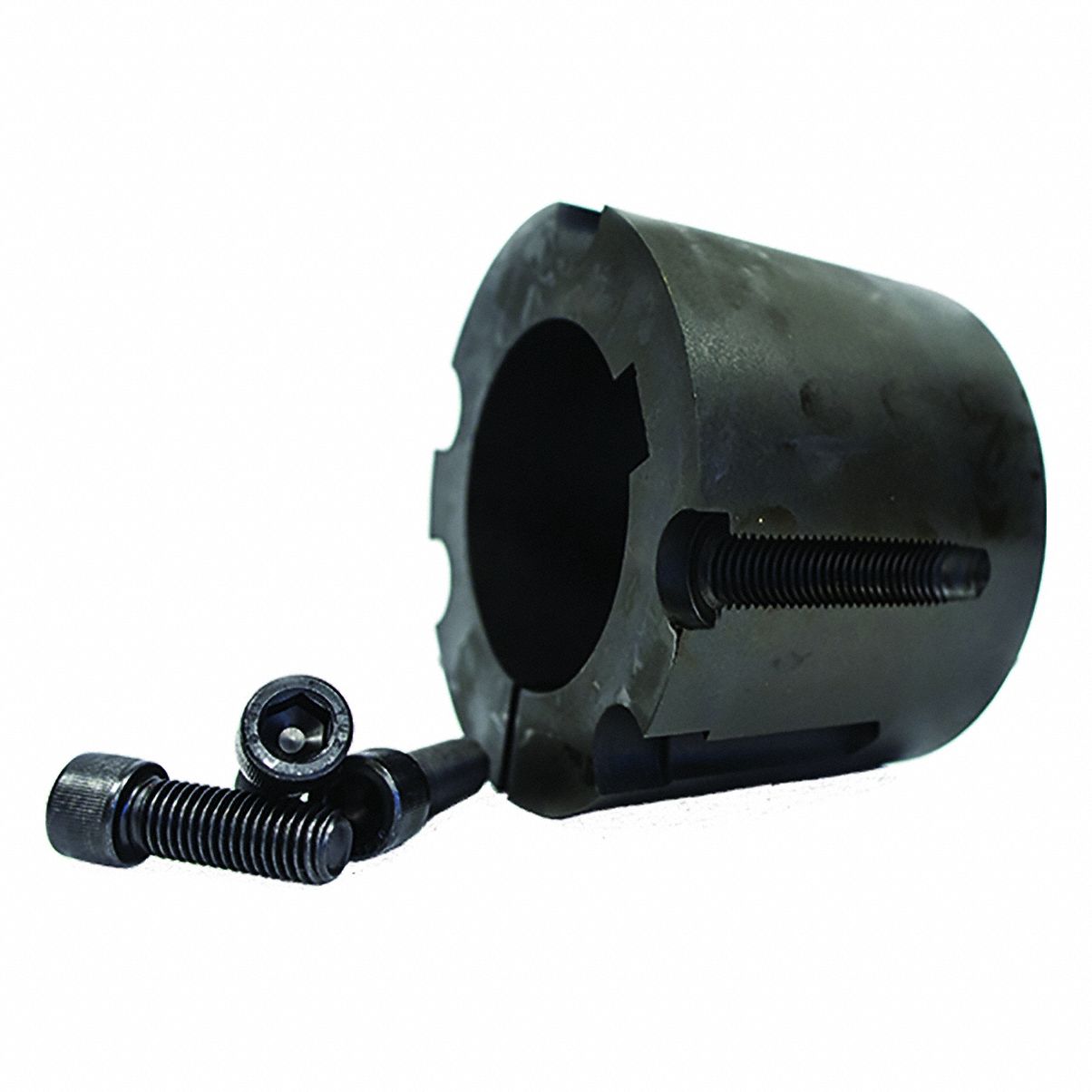

Taper Lock Bushing Bushing Type Taper Lock Bore Bushing Series 1615 Bore Diameter 1 5/16 in Length 1.
5 in Bolt Circle Diameter 2.
13 in Bolt Size Not Applicable System of Measurement Inch Fastener Tightening Torque Capacity 4 300 in-lb Flange Type Flangeless Flange Width Not Applicable For Shaft Type Keyed Includes (2) Set Screws Keyway Height 3/16 in Keyway Width 3/8 in Length Less Flange Not Applicable Material Steel Overall Diameter 2.
25 in Taper 8 Degrees - Alternate Part Numbers- 812ZT1- 1615X1516
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
1615X1-5/16
Manufacturer Part Number:
APPROVED VENDOR
