Description

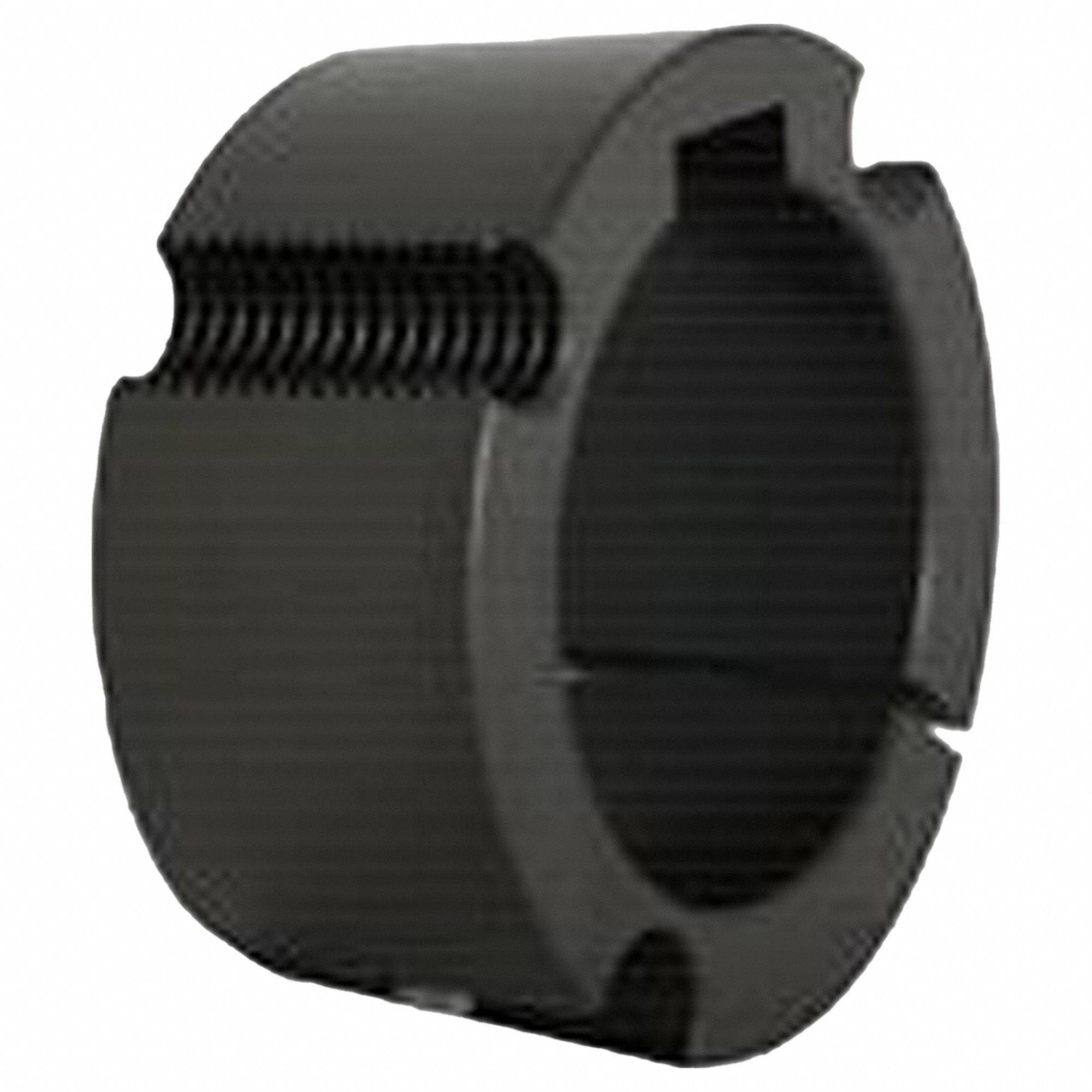

Taper Lock Bushing Bushing Type Taper Lock Bore Bushing Series 1610 Bore Diameter 40 mm Length 1 in Bolt Circle Diameter 2.
13 in Bolt Size Not Applicable System of Measurement Metric Fastener Tightening Torque Capacity 4 300 in-lb Flange Type Flangeless Flange Width Not Applicable For Shaft Type Keyed Includes (2) Set Screws Keyway Height 3.
5 mm Keyway Width 12 mm Length Less Flange Not Applicable Material Steel Overall Diameter 2.
25 in Taper 8 Degrees - Alternate Part Numbers- 812ZP8- 1610X40MM
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
1610X40MM
Manufacturer Part Number:
APPROVED VENDOR
