Description

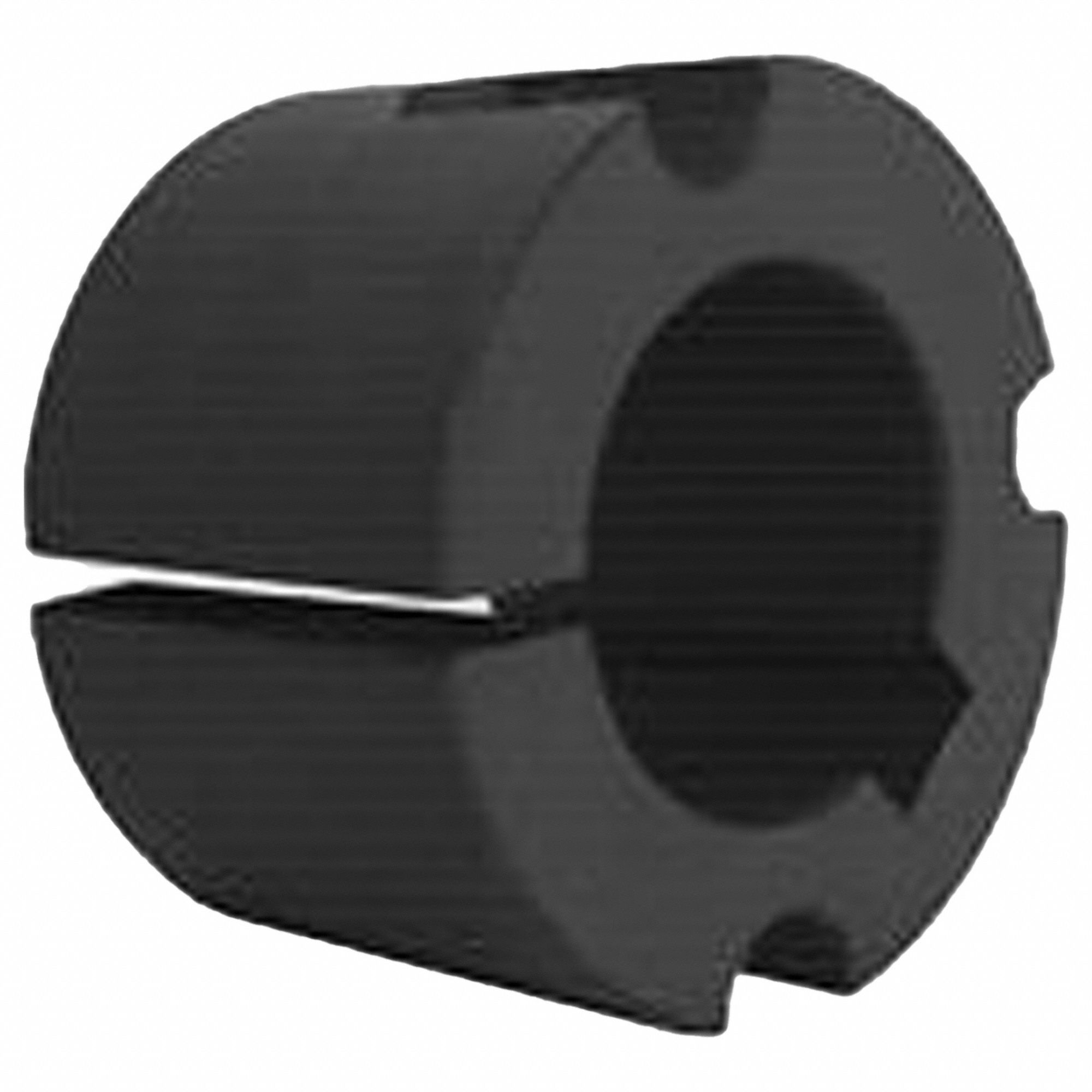

Taper Lock Bushing Bushing Type Taper Lock Bore Bushing Series 1008 Bore Diameter 16 mm Length 0.
875 in Bolt Circle Diameter 1.
33 in Bolt Size Not Applicable System of Measurement Metric Flange Type Flangeless Flange Width Not Applicable For Shaft Type Keyed Includes (2) Set Screws Keyway Height 2.
4 mm Keyway Width 5 mm Length Less Flange Not Applicable Material Steel Overall Diameter 1.
375 in Taper 8 Degrees - Alternate Part Numbers- 812ZE4- 1008X16MM
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
1008X16MM
Manufacturer Part Number:
APPROVED VENDOR
