Product Overview

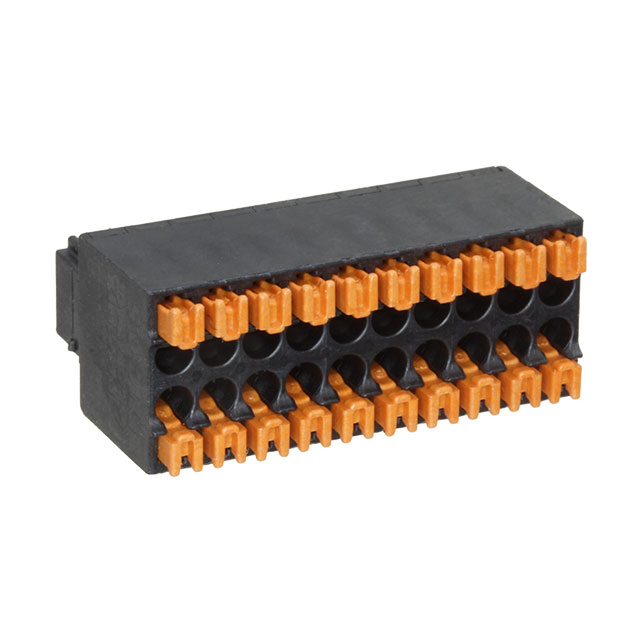

The 20 Position Terminal Block Plug features female sockets designed for secure and reliable connections. This connector offers a pitch of 0.100" (2.54mm) and is suitable for various applications, ensuring flexibility and ease during installation. Ideal for free hanging (in-line) applications, it integrates a screwless connection method for quick setup and maintenance.
Key Features
- 20 positions for maximum connectivity
- 180° wire entry for easy installation
- Screwless termination style - leg spring, push-in spring
- Constructed for free hanging (in-line) mounting
- Black color finish for an industrial look
- Gold-plated contact mating finish for enhanced conductivity
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Phoenix Contact |
| Series | COMBICON DFMC |
| Packaging | Bulk |
| Part Status | Active |
| Type | Plug, Female Sockets |
| Number of Positions | 20 |
| Positions Per Level | 10 |
| Number of Levels | 2 |
| Pitch | 0.100" (2.54mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screwless - Leg Spring, Push-In Spring |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 6A |
| Voltage - IEC | 160 V |
| Current - UL | 6 A |
| Voltage - UL | 150 V |
| Wire Gauge or Range - AWG | 20-26 AWG |
| Wire Gauge or Range - mm² | 0.14-0.5mm² |
| Color | Black |
| Contact Mating Finish | Gold |
Features
Specs
Country of Origin:
string
Manufacturer Name:
TE Connectivity AMP Connectors
Manufacturer Part Number:
277-17240-ND
