Product Overview

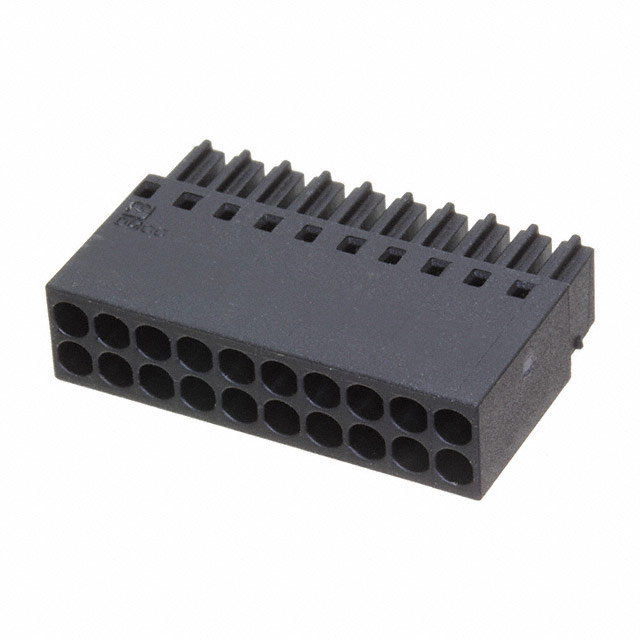

The 20 Position Terminal Block Plug Housing is designed for use with female sockets, featuring a compact 0.100" (2.54mm) pitch and a 180° free-hanging configuration. Ideal for a range of applications in industrial and commercial settings, this terminal block ensures reliability and efficient connectivity.
Key Features
- 20 positions for versatile connections
- Compatible with female sockets
- 0.100" (2.54mm) pitch for standardization
- 180° free-hanging (in-line) mounting type
- Crimp termination style for easy assembly
- Operating temperature range of -55°C
- Black polyamide (PA) housing for durability
- Designed for wire sizes 18-26 AWG
- Voltage rating of 160 V
- Current rating of 6A (IEC)
Benefits
- Reliable performance in demanding environments
- Easy installation and maintenance with crimp termination
- High compatibility with standard sockets
- Compact design saves space in wiring applications
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Phoenix Contact |
| Series | COMBICON DMCC |
| Packaging | Bulk |
| Part Status | Active |
| Type | Plug Housing for Female Sockets |
| Number of Positions | 20 |
| Positions Per Level | 10 |
| Number of Levels | 2 |
| Pitch | 0.100" (2.54mm) |
| Plug Wire Entry | 180° |
| Termination Style | Crimp |
| Current - IEC | 6A |
| Voltage - IEC | 160 V |
| Wire Gauge or Range - AWG | 18-26 AWG |
| Wire Gauge or Range - mm² | 0.14 ~ 0.75mm² |
| Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Insulation Height | 0.256" (6.50mm) |
Features
Specs
Country of Origin:
EA
Manufacturer Name:
TE Connectivity AMP Connectors
Manufacturer Part Number:
277-18495-ND
