Product Overview

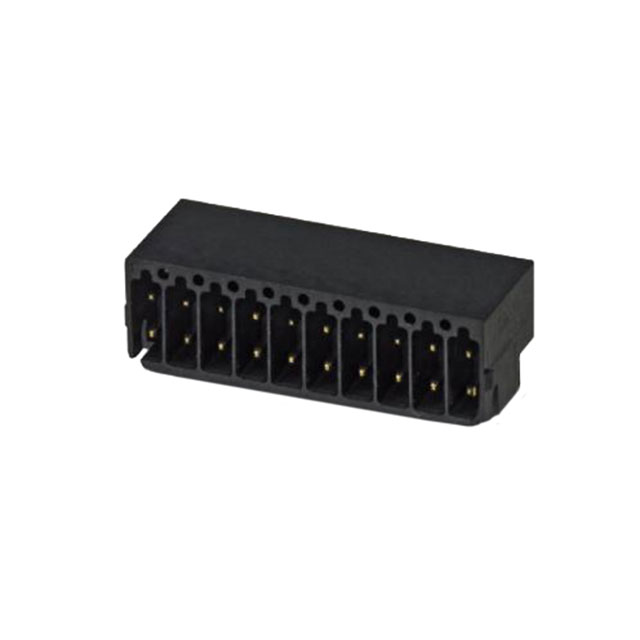

The 20 Position Terminal Block Header with male pins is a high-quality connector designed for efficient electrical connections. It features a shrouded design with four sides for enhanced durability and reliability. The right angle orientation and through-hole mount make it ideal for various applications, ensuring easy installation and space-saving solutions.
Key Features
- 20 positions for multiple connections
- Right angle header for compact designs
- Shrouded with four sides for safety
- Through hole mounting for secure attachment
- Gold contact mating finish for improved conductivity
- Operating current capacity up to 6A
- Voltage rating of 160V (IEC) and 150V (UL)
- Solder termination style for reliable connections
- UL94 V-0 flammability rating for safety
Benefits
- Enhances connectivity in compact spaces
- Robust design ensures long-lasting performance
- Prevents accidental disconnections with shrouded design
- Facilitates easy and secure mounting solutions
- Reliable electrical performance with gold contacts
Product Specifications
| Specification | Details |
|---|---|
| Category | Connectors, Interconnects |
| Manufacturer | Phoenix Contact |
| Series | COMBICON DMC |
| Packaging | Tape & Reel (TR), Cut Tape (CT) |
| Part Status | Active |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Number of Positions | 20 |
| Positions Per Level | 10 |
| Number of Levels | 2 |
| Pitch | 0.100" (2.54mm) |
| Header Orientation | 90°, Right Angle |
| Termination Style | Solder |
| Mounting Type | Through Hole |
| Current - IEC | 6A |
| Voltage - IEC | 160 V |
| Current - UL | 6 A |
| Voltage - UL | 150 V |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Contact Mating Finish | Gold |
| Material Flammability Rating | UL94 V-0 |
| Contact Tail Length | 0.079" (2.00mm) |
| Insulation Height | 0.291" (7.40mm) |
Features
Specs
Country of Origin:
CN
Manufacturer Name:
TE Connectivity AMP Connectors
Manufacturer Part Number:
277-17241-1
