Description

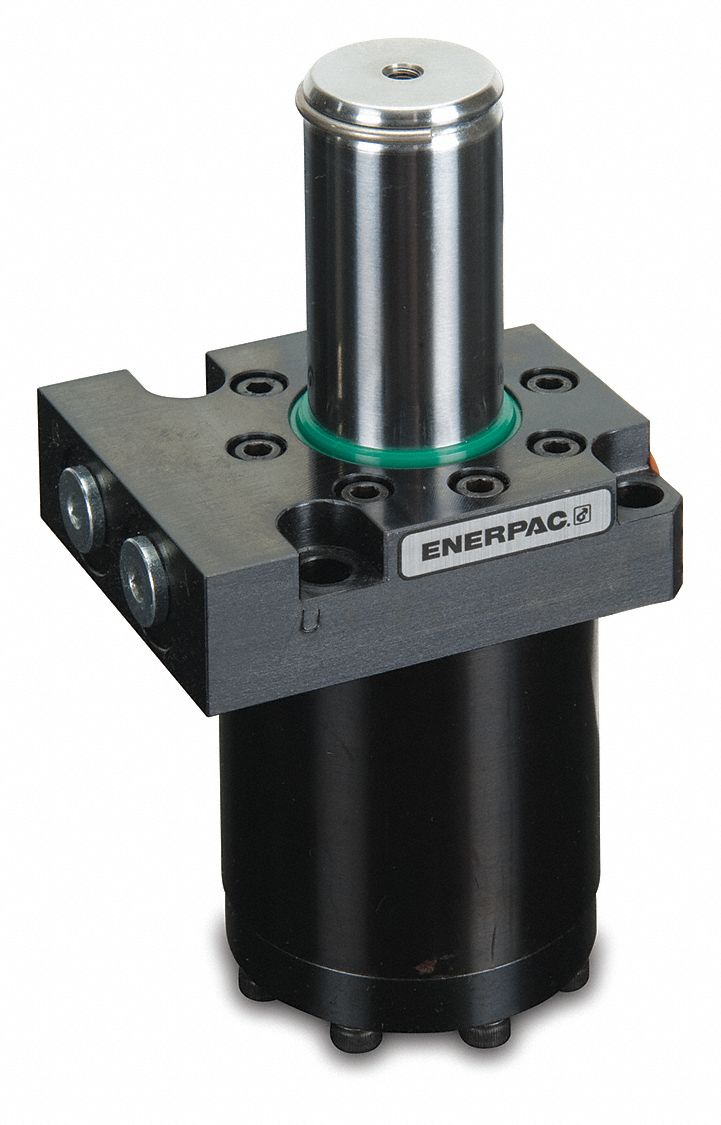

Swing Clamp Hydraulic Cylinder Swing Body Material Steel Mounting Style Upper Flange Single Acting/Double Acting Double Acting Turns Right Clamping Force 4 200 lb Total Stroke 0.
78 in Effective Area Clamped 1.
10 sq in Clamping Stroke 0.
55 in Max Pressure 5 076 psi Series SU Swing Angle 90 Degrees Port Size #4 SAE Effective Area Unclamped 2.
35 sq in Oil Capacity Clamped 1.
22 cu in Oil Capacity Unclamped 2.
6 cu in Max Oil Flow 140 cu in/min Pressure Range 500 to 5000 psi
Features
Extra Information
Processing Time:
2-3 days
