Description

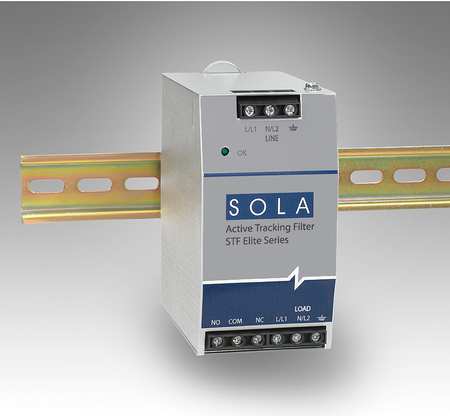

SOLA/HEVI-DUTY STFE10010N - SURGE PROTECTOR DIN RAIL FILTER 1P 30KA - SURGE PROTECTION DEVICE DIN RAIL FILTERED LOCATION TYPE 120 VAC NOMINAL DISCHARGE CURRENT 10.
0 VOLTAGE 120 PHASE 1 WIRE 12 NUMBER OF POLES 1 MAX SURGE CURRENT PER PHASE 30KA MAX SURGE CURRENT PER MODE 20KA (L-N) 10KA (L-G N-G) MAX CONTINUING OPERATING VOLTAGE 150VAC VOLTAGE PROTECTION RATING 400V (L-N) 500V (L-G N-G) SHORT CIRCUIT CURRENT RATING 5KAIC MODES OF PROTECTION L-N L-G N-G MOUNTING STYLE DIN RAIL MOUNTENCLOSURE TYPE FULLY ENCLOSED METAL HOUSING - EQUAL TO 19L424
Features
Extra Information
Mandatory & Preferred Sources:
- Green Products
Specs
Manufacturer Name:
SOLA/HEVI-DUTY
Manufacturer Part Number:
STFE10010N
