Description

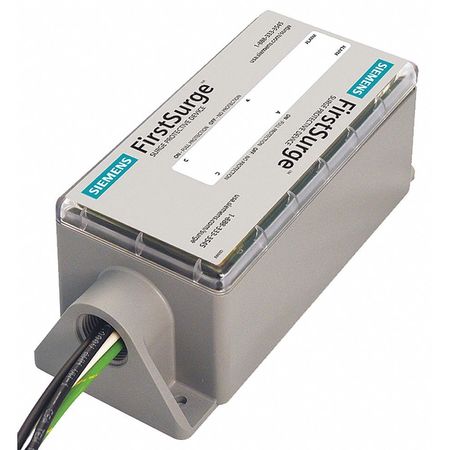

SIEMENS FS060 - SURGE PROTECTION DEVICE 120/240VAC 1PH - SURGE PROTECTION DEVICE VOLTAGE 120/240VAC PHASE 1 VOLTAGE PROTECTION RATING 600V (L-G L-N N-G) 900V (L-L) MAX CONTINUING OPERATING VOLTAGE 150VAC NOMINAL DISCHARGE CURRENT 20KA MODES OF PROTECTION L-G L-L L-N N-G MOUNTING LOCATION EXTERNALLY MOUNTED FILTERING NO MODULAR NO COLOR GRAY MOUNTING STYLE CHASE NIPPLE ENCLOSURE NEMA RATING 4X NUMBER OF POLES 2 BASIC MATERIAL NONMETALLIC NUMBER OF WIRES 3 WIRES + GROUND SYSTEM CONNECTION PARALLEL - EQUAL TO 45GF54
Features
Extra Information
Mandatory & Preferred Sources:
- Made in the USA
Specs
Manufacturer Name:
SIEMENS
Manufacturer Part Number:
FS060
