Description

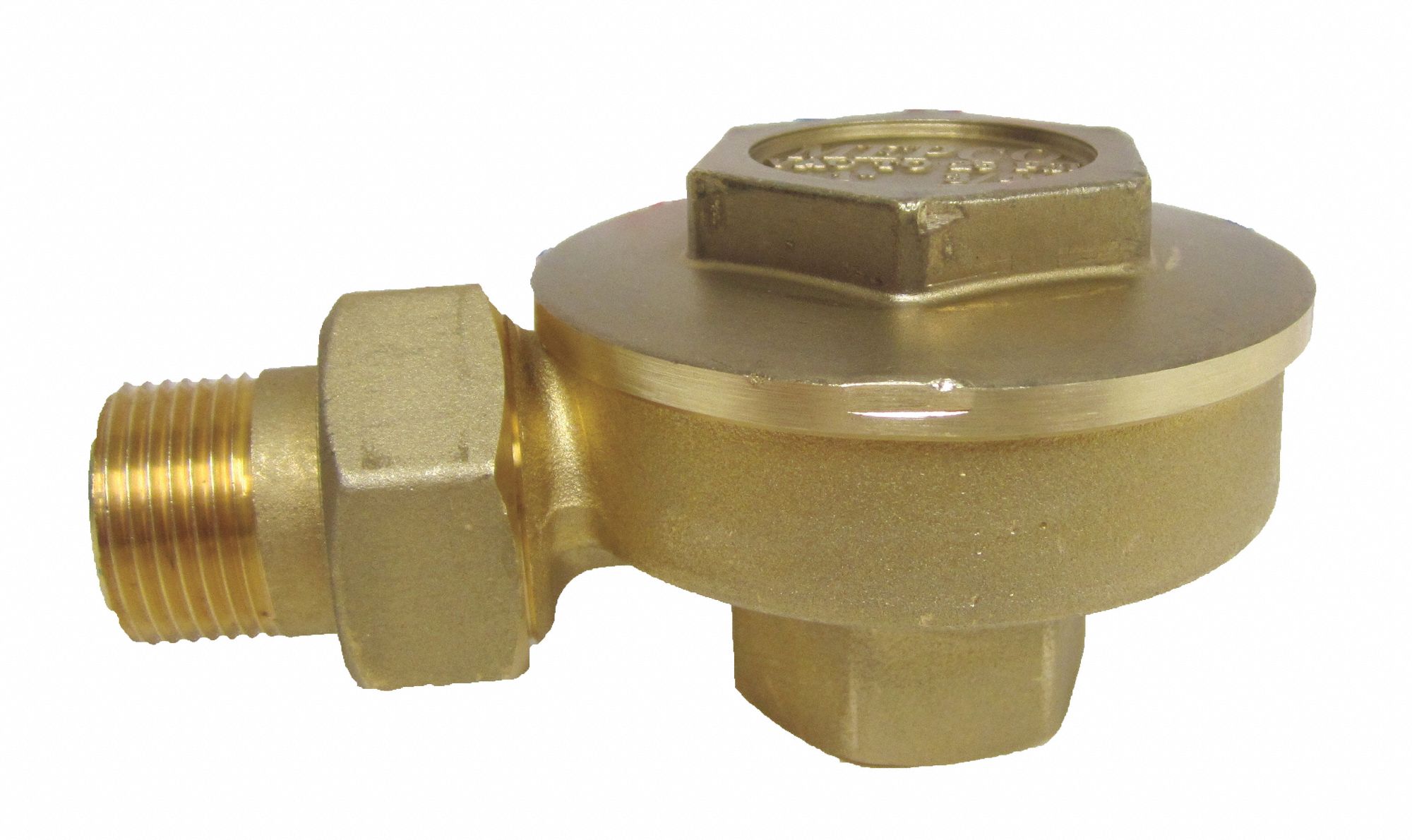

Steam Trap (F)NPT Connections 3/4 in Max Operating PSI 25 psi End to End Length 3 1/4 in Condensate Capacity Lbs/Hr 2 450 lb/hr Max Temp 345 Degrees F Type Thermostatic Downstream PSI Range 0 to 20 psi Body Material Brass NPT Inlet 3/4 in NPT Outlet 3/4 in NPT Port 3/4 in Disc Material Stainless Steel Pipe Configuration Angle Trap Position Angle Pressure Air Vent Releases Air and Non-Condensable Gases That Adversely Affect The Heat Transfer of A Steam System Application Steam
