Description

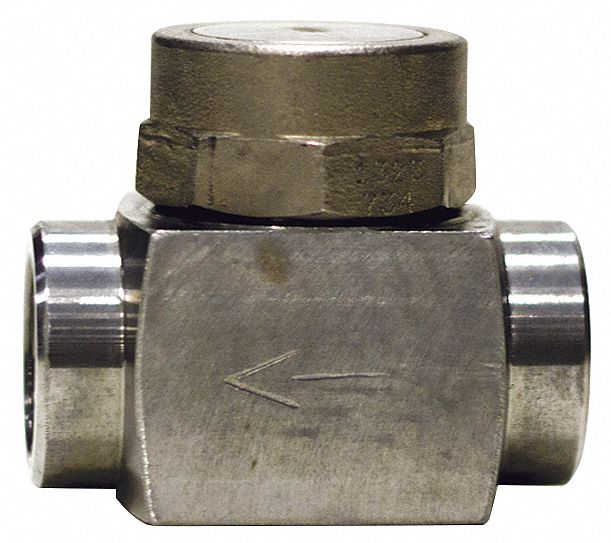

Steam Trap (F)NPT Connections 3/4 in Max Operating PSI 600 psi End to End Length 2 13/16 in Condensate Capacity Lbs/Hr 1 830 lb/hr Max Temp 800 Degrees F Type Disc Downstream PSI Range 0 to 595 psi Body Material Stainless Steel NPT Inlet 3/4 in NPT Outlet 3/4 in NPT Port 3/4 in Disc Material Stainless Steel Pipe Configuration Straight Trap Position Horizontal Pressure Air Vent Releases Air and Non-Condensable Gases That Adversely Affect The Heat Transfer of A Steam System
