Description

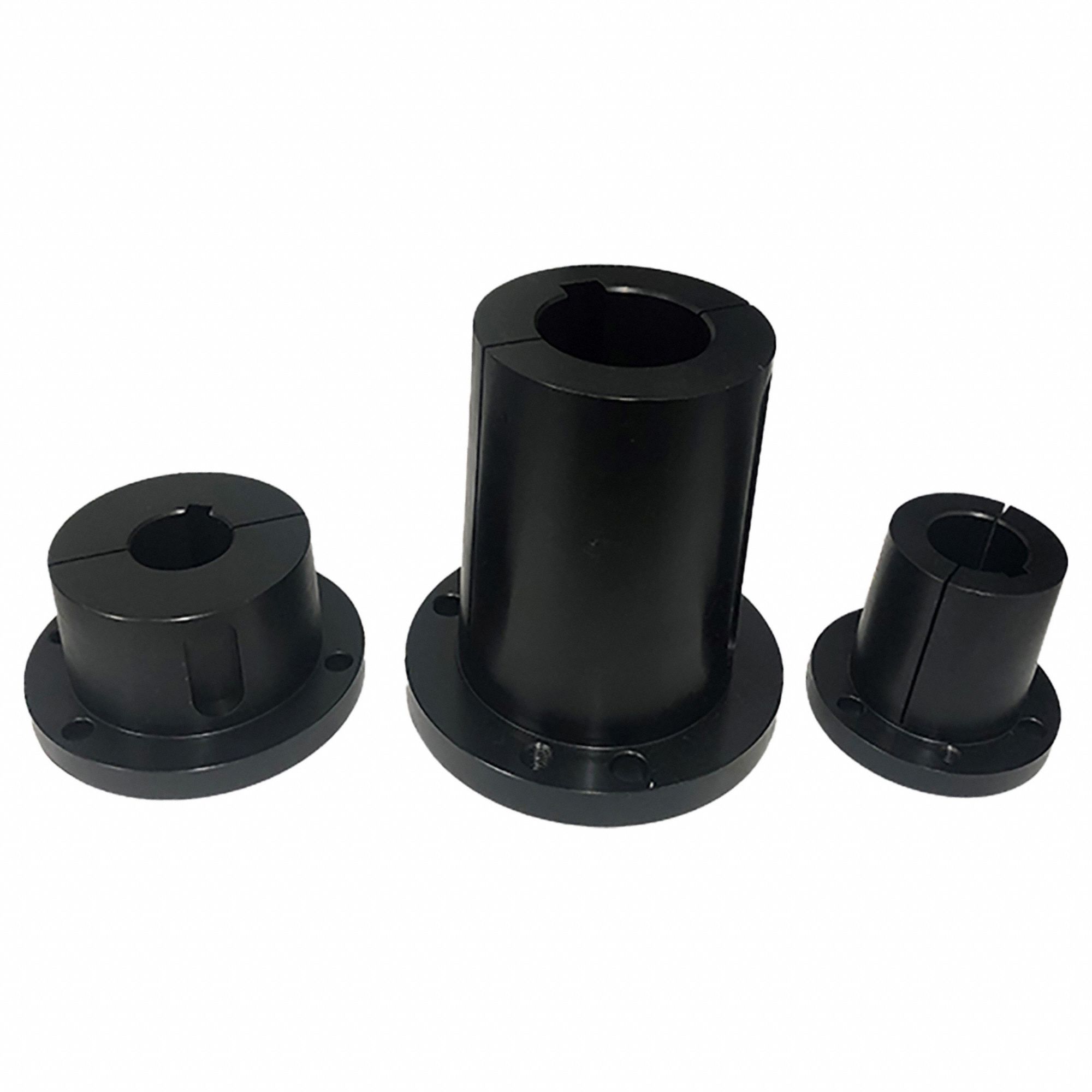

Split Taper Bushing Bushing Type Split Taper Bore Bushing Series B Bore Diameter 1 1/4 in Length 1.
938 in Bolt Circle Diameter 3.
13 in Bolt Size Not Applicable System of Measurement Inch Bushing Diameter 2.
625 in Fastener Tightening Torque Capacity 192 in-lb Flange Type Solid Flange Width 1/2 in For Shaft Type Keyed Includes (3) Cap Screws Keyway Height 1/8 in Keyway Width 1/4 in Length Less Flange 1.
438 in Material Steel Overall Diameter 3.
688 in Taper 3/4 in Per ft- Alternate Part Numbers- 812Y92- BX114
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
BX1-1/4
Manufacturer Part Number:
APPROVED VENDOR
