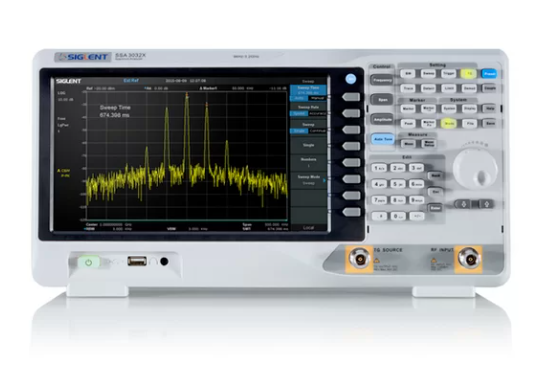

SSA3032X Plus Spectrum Analyzer

SSA3032X Plus

Frequency range: 9 KHz~3.2 GHz
Resolution bandwidth (RBW): 1 Hz~1 MHz
Phase noise: Total Amplitude Accuracy: < 0.7 dB
Display average noise level (DANL): -161 dBm/Hz
Tracking Generator: 100 kHz – 3.2 GHz

Description

Siglent’s SSA3000X family of spectrum analyzers offer a frequency range of 9 KHz to 2.1 GHz / 3.2 GHz. The Plus family adds features such as 10.1 inch Multi-Touch screen display, mouse and keyboard control. A web browser-based software control via LAN is also included. With their light weight, small size, and friendly user interface, the SSA3000 Pluses present a bright easy to read display, powerful and reliable automatic measurements, and plenty of impressive features. Applications are many, but include research and development, education, production, maintenance, and many more.

Key Features

• All-Digital IF Technology
• Frequency Range from 9 kHz up to 3.2 GHz
• -161 dBm/Hz Displayed Average Noise Level (Typ.)
• -98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)
• Total Amplitude Accuracy < 0.7 dB
• 1 Hz Minimum Resolution Bandwidth (RBW)
• Standard Preamplifier
• Up to 3.2 GHz Tracking Generator Kit (Opt.)
• Reflection Measurement Kit (Opt.)
• Advanced Measurement Kit (Opt.)
• EMI Pre-compliance Measurements Kit (Opt.)
• 10.1 lnch WVGA（1024×600）Display
