Description

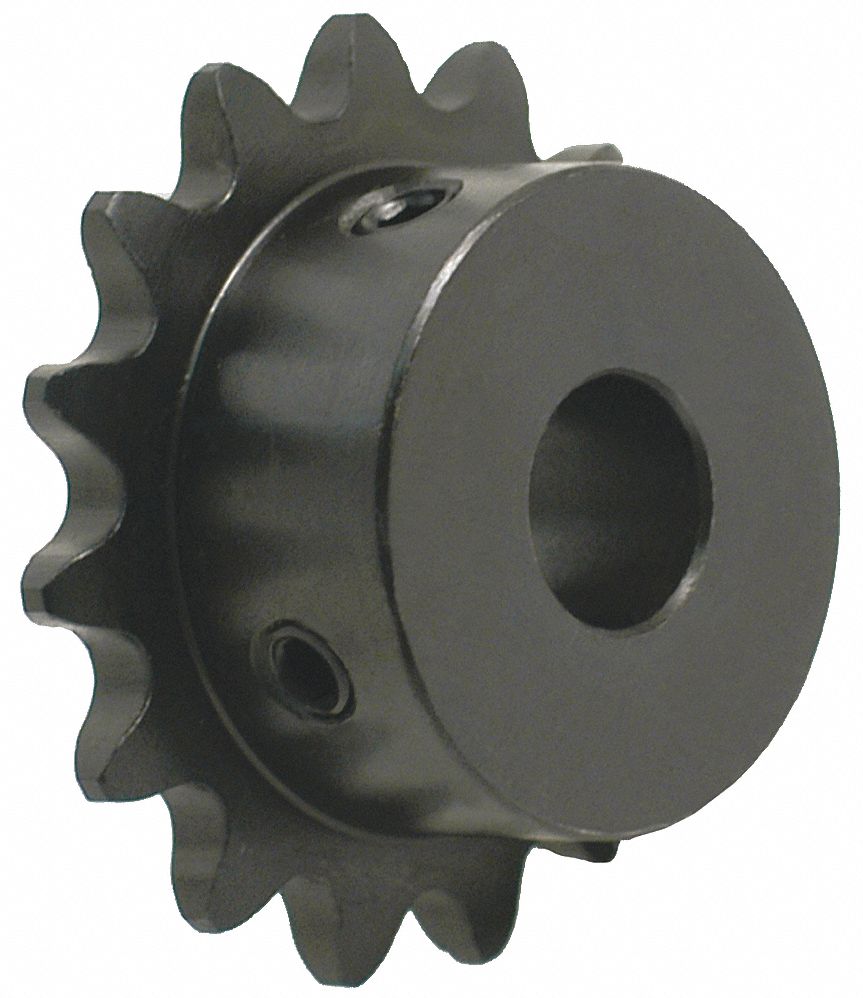

Sprocket Bore Diameter 1/2 in For Chain Pitch 3/8 in For Number of Strands Single Hub Type One Side Material Steel Maximum Bore Diameter 1/2 in Number of Teeth 14 Outside Diameter 1.
87 in Pitch Diameter 1.
685 in Bore Type Fixed Chain Number 35 Finish Black Oxide Hub Diameter 1 1/4 in Hub Projection 0.
582 in Includes Set Screws Keyway No Keyway Depth Not Applicable Keyway Width Not Applicable Length through Bore 3/4 in Number of Set Screws 2- Alternate Part Numbers- 36GA24- 35BS14HX12- 36GA24
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
35BS14H X 1/2
Manufacturer Part Number:
TRITAN
