Description

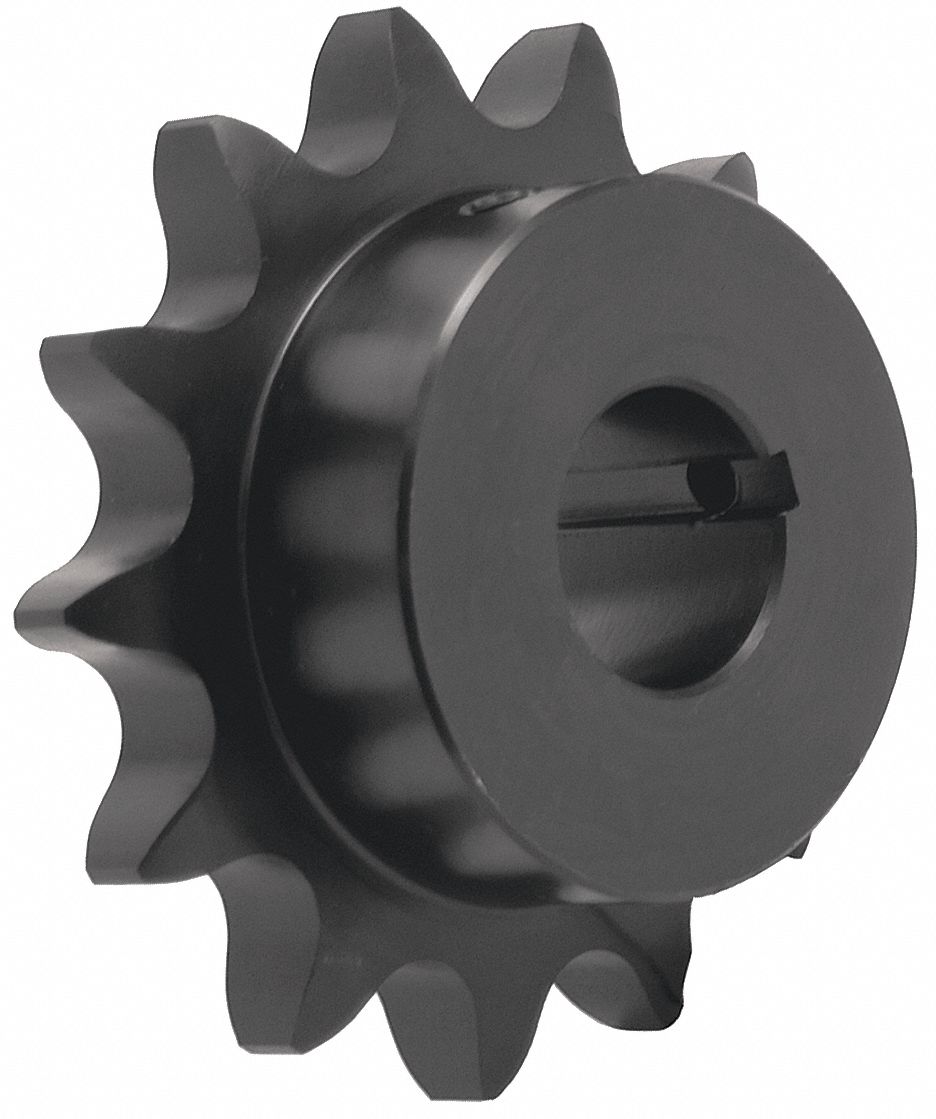

Sprocket Bore Diameter 1 7/16 in For Chain Pitch 3/4 in For Number of Strands Single Hub Type One Side Material Steel Maximum Bore Diameter 1 7/16 in Number of Teeth 24 Outside Diameter 6.
15 in Pitch Diameter 5.
746 in Bore Type Fixed Chain Number 60 Finish Black Oxide Hub Diameter 4 in Hub Projection 0.
791 in Includes Set Screws Keyway Yes Keyway Depth 3/16 in Keyway Width 3/8 in Length through Bore 1 1/4 in Number of Set Screws 2- Alternate Part Numbers- 36GE25- 60BS24HX1716- 36GE25
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
60BS24H X 1 7/16
Manufacturer Part Number:
TRITAN
