Description

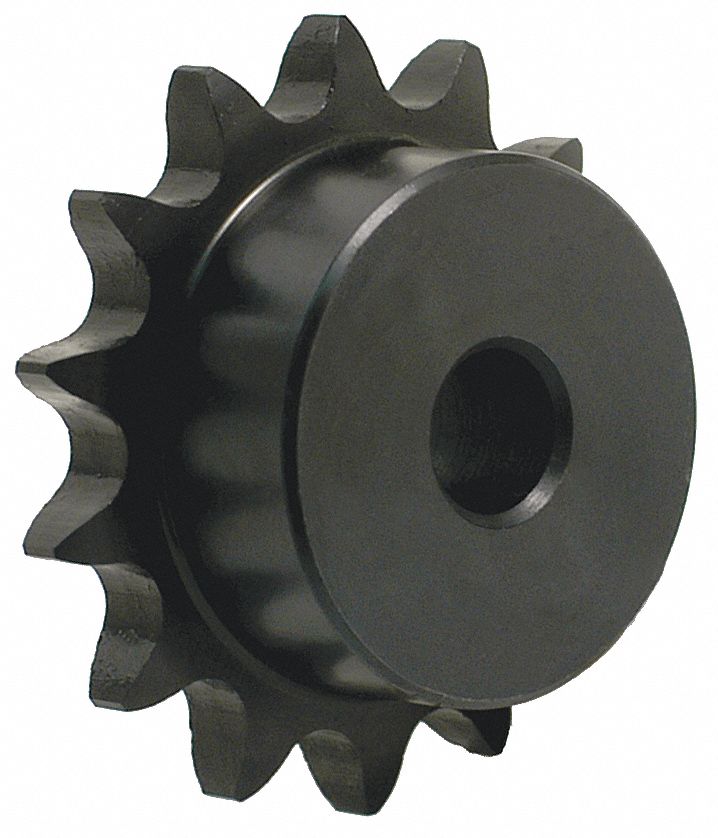

Sprocket Bore Diameter 1/4 in For Chain Pitch 1/4 in For Number of Strands Single Hub Type One Side Material Steel Maximum Bore Diameter 9/16 in Number of Teeth 15 Outside Diameter 1.
326 in Pitch Diameter 1.
202 in Bore Type Plain Chain Number 25 Finish Black Oxide Hub Diameter 7/8 in Hub Projection 0.
39 in Keyway No Keyway Depth Not Applicable Keyway Width Not Applicable Length through Bore 1/2 in Number of Set Screws 0 Set Screw Location Not Applicable- Alternate Part Numbers- 36GF07- 25B15HX14MPB- 36GF07
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
25B15H X 1/4 MPB
Manufacturer Part Number:
TRITAN
