Description

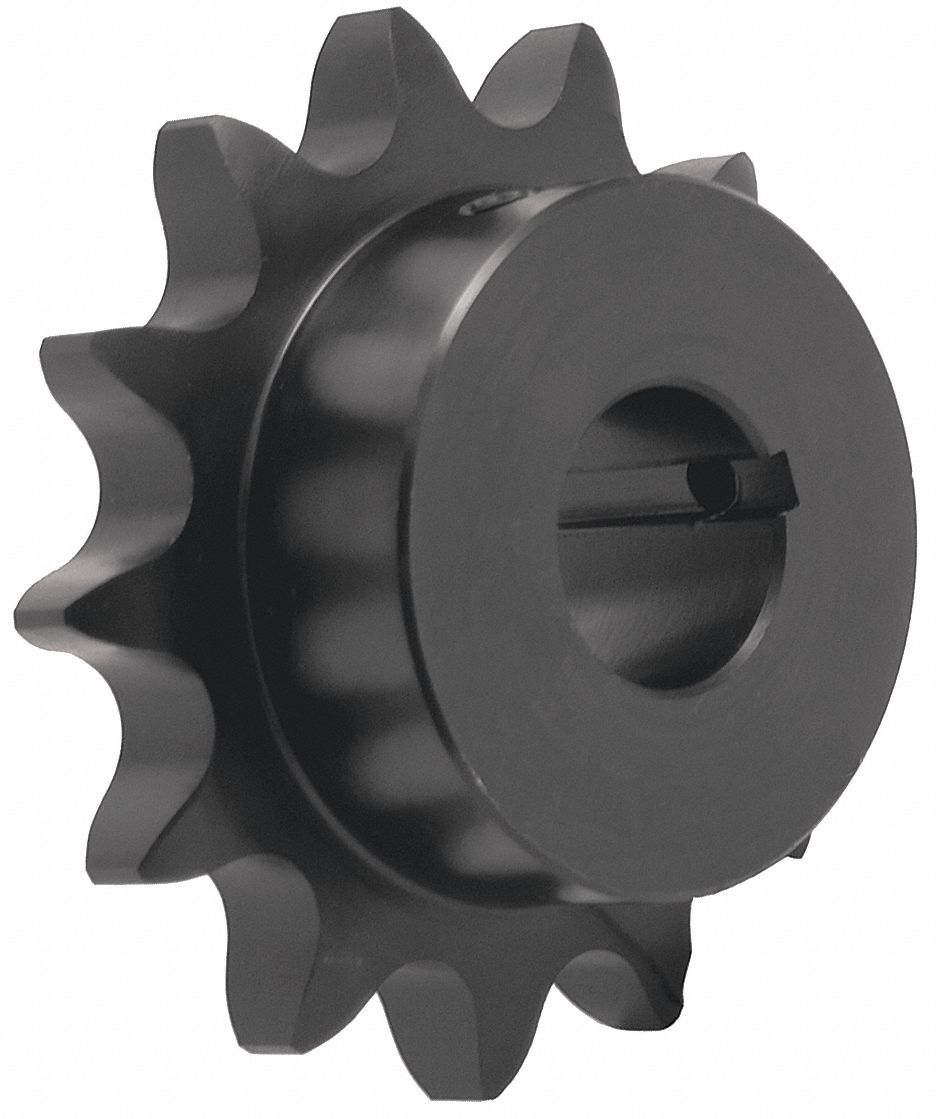

Sprocket Bore Diameter 7/8 in For Chain Pitch 1/2 in For Number of Strands Single Hub Type One Side Material Steel Maximum Bore Diameter 7/8 in Number of Teeth 22 Outside Diameter 3.
78 in Pitch Diameter 3.
513 in Bore Type Fixed Chain Number 40 Finish Black Oxide Hub Diameter 2 7/8 in Hub Projection 0.
716 in Includes Set Screws Keyway Yes Keyway Depth 3/32 in Keyway Width 3/16 in Length through Bore 1 in Number of Set Screws 2- Alternate Part Numbers- 36GC17- 40BS22HX78- 36GC17
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
40BS22H X 7/8
Manufacturer Part Number:
TRITAN
