Description

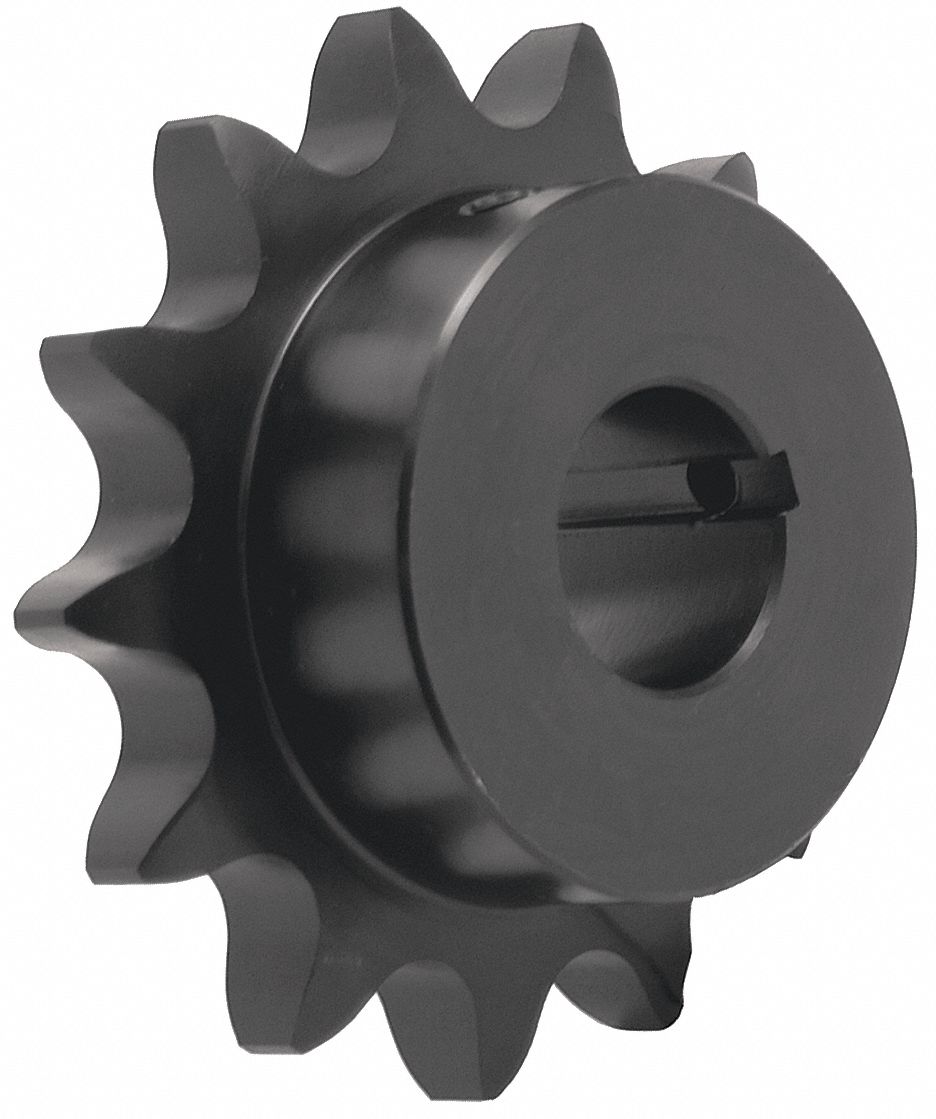

Sprocket Bore Diameter 1 1/4 in For Chain Pitch 1/2 in For Number of Strands Single Hub Type One Side Material Steel Maximum Bore Diameter 1 1/4 in Number of Teeth 20 Outside Diameter 3.
46 in Pitch Diameter 3.
196 in Bore Type Fixed Chain Number 40 Finish Black Oxide Hub Diameter 2 5/8 in Hub Projection 0.
716 in Includes Set Screws Keyway Yes Keyway Depth 1/8 in Keyway Width 1/4 in Length through Bore 1 in Number of Set Screws 2- Alternate Part Numbers- 36GC07- 40BS20HX114- 36GC07
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
40BS20H X 1 1/4
Manufacturer Part Number:
TRITAN
