Description

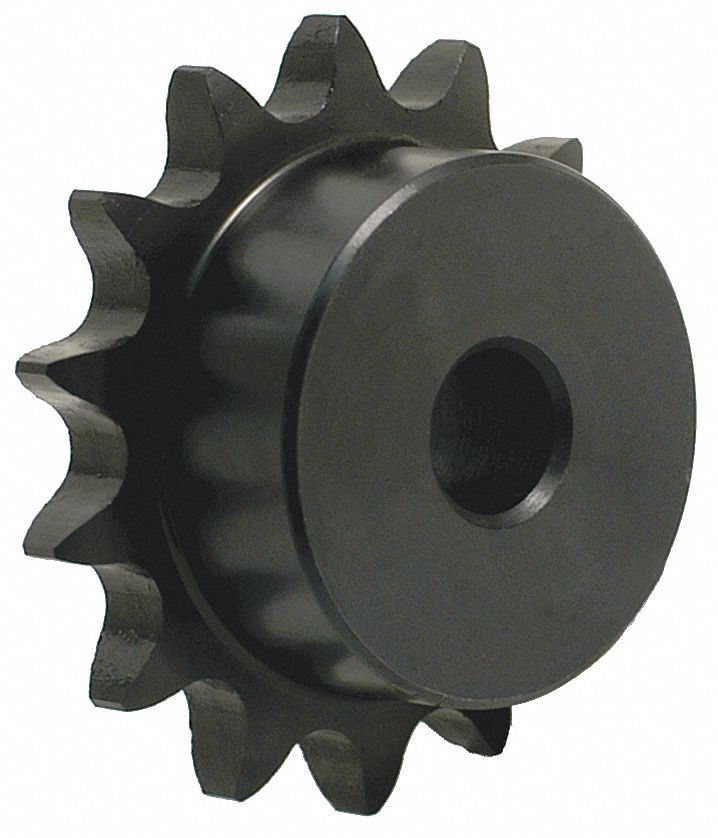

Sprocket Bore Diameter 1/2 in For Chain Pitch 1/2 in For Number of Strands Single Hub Type One Side Material Steel Maximum Bore Diameter 1 1/8 in Number of Teeth 14 Outside Diameter 2.
49 in Pitch Diameter 2.
247 in Bore Type Plain Chain Number 40 Finish Black Oxide Hub Diameter 1 11/16 in Hub Projection 0.
591 in Keyway No Keyway Depth Not Applicable Keyway Width Not Applicable Length through Bore 7/8 in Number of Set Screws 0 Set Screw Location Not Applicable- Alternate Part Numbers- 36GF36- 40B14HX12MPB- 36GF36
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
40B14H X 1/2 MPB
Manufacturer Part Number:
TRITAN
