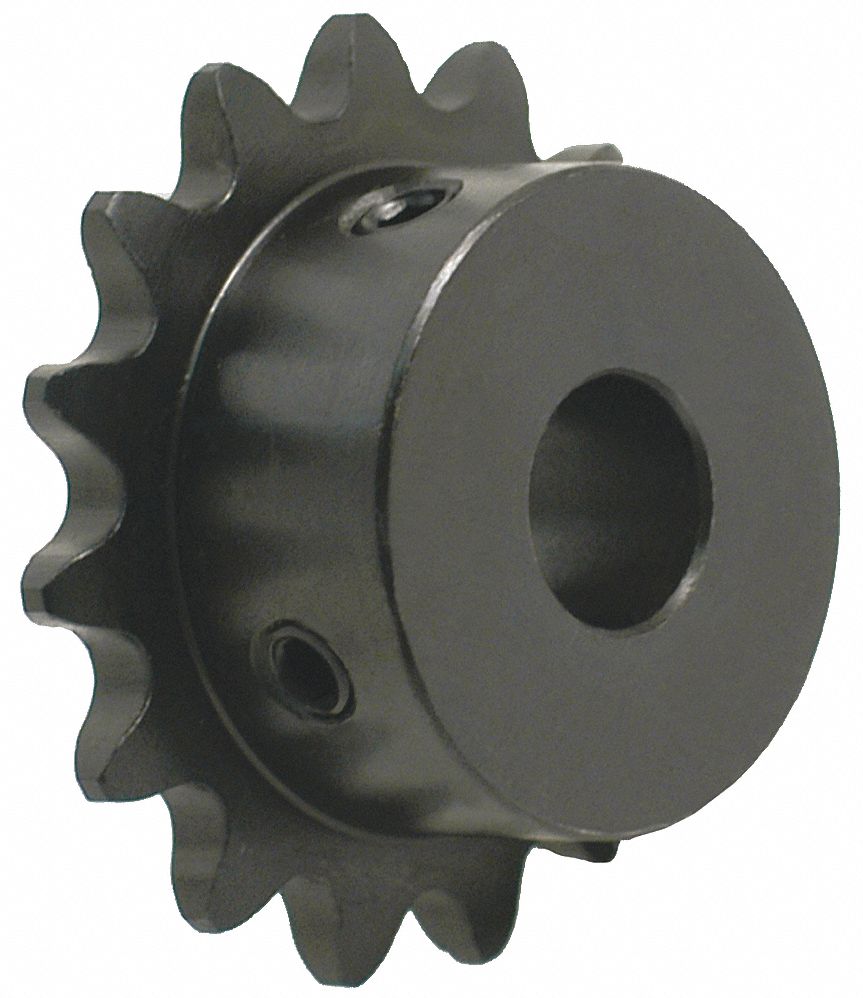

Sprocket Bore Diameter 1/2 in For Chain Pitch 1/2 in For Number of Strands Single Hub Type One Side Material Steel Maximum Bore Diameter 1/2 in Number of Teeth 12 Outside Diameter 2.
17 in Pitch Diameter 1.
932 in Bore Type Fixed Chain Number 40 Finish Black Oxide Hub Diameter 1 9/16 in Hub Projection 0.
591 in Includes Set Screws Keyway No Keyway Depth Not Applicable Keyway Width Not Applicable Length through Bore 7/8 in Number of Set Screws 2- Alternate Part Numbers- 36GA68- 40BS12HX12- 36GA68
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
40BS12H X 1/2
Manufacturer Part Number:
TRITAN
