Description

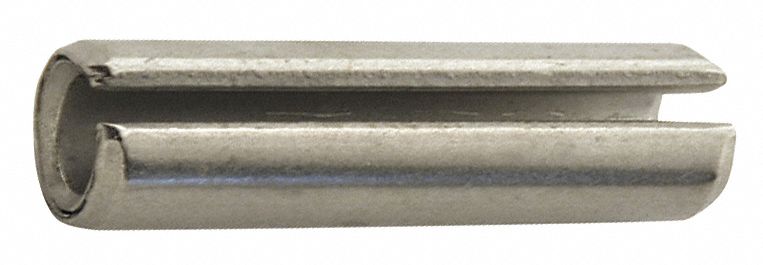

Spring Pin System of Measurement Inch Pin Diameter 1/4 in Pin Type Slotted Material Stainless Steel Material Grade/Class 18-8 Finish Plain Usable Length 3/4 in End Type Chamfered Chamfer Diameter 0.
245 in Wall Thickness 0.
048 in Fits Minimum Hole Diameter 1/4 in Fits Maximum Hole Diameter 1/4 in Shank Length 3/4 in Maximum Chamfer Length 0.
065 in Minimum Chamfer Length 0.
012 in Nominal Diameter 1/4 in Standards ASME B18.
8.
2 Shank Length Tolerance +/-0.
015 in
Features
Extra Information
Processing Time:
2-3 days
