Description

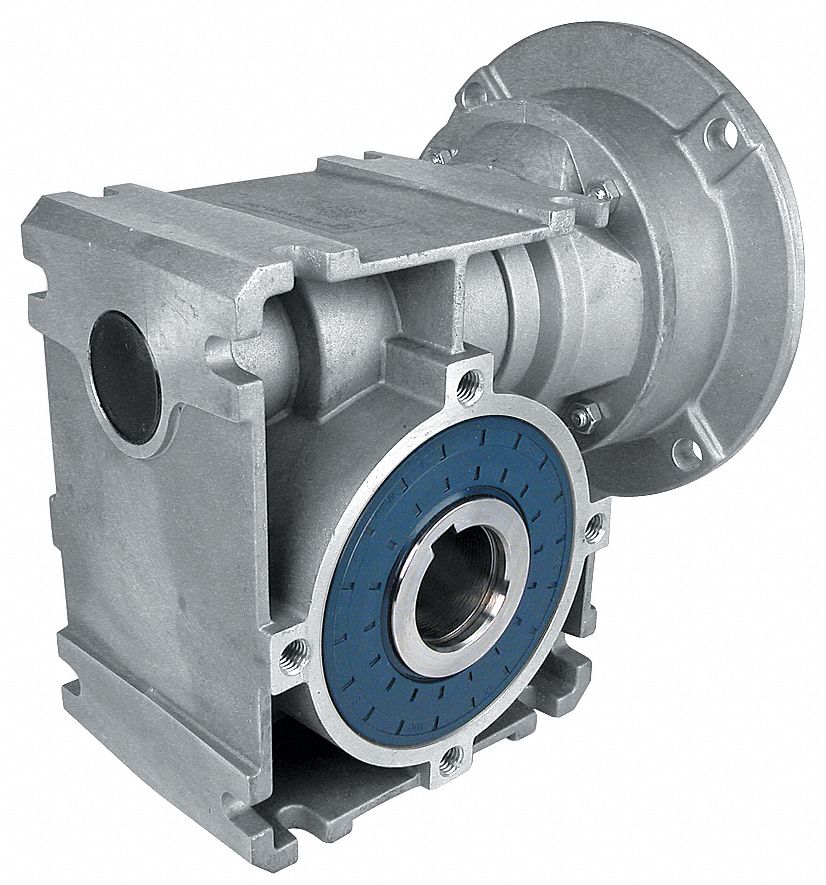

Speed Reducer Input Connection Type Right Angle Gear Type Worm Output Shaft Type Hollow Maximum Output Speed 29 RPM Motor Frame Designation 56C Worm Center Distance 1.
22 in Base to Center 1.
56 in Gear Ratio 60 1 Rotation CW/CCW Maximum Input Horsepower 0.
25 hp Maximum Output Torque 212 in-lb Overhung Load Capacity 405 ft-lb Mounting Orientation Any Angle Housing Material Aluminum Bearing Type Ball Housing Material Finish Tural
Features
Extra Information
Processing Time:
2-3 days
