Description

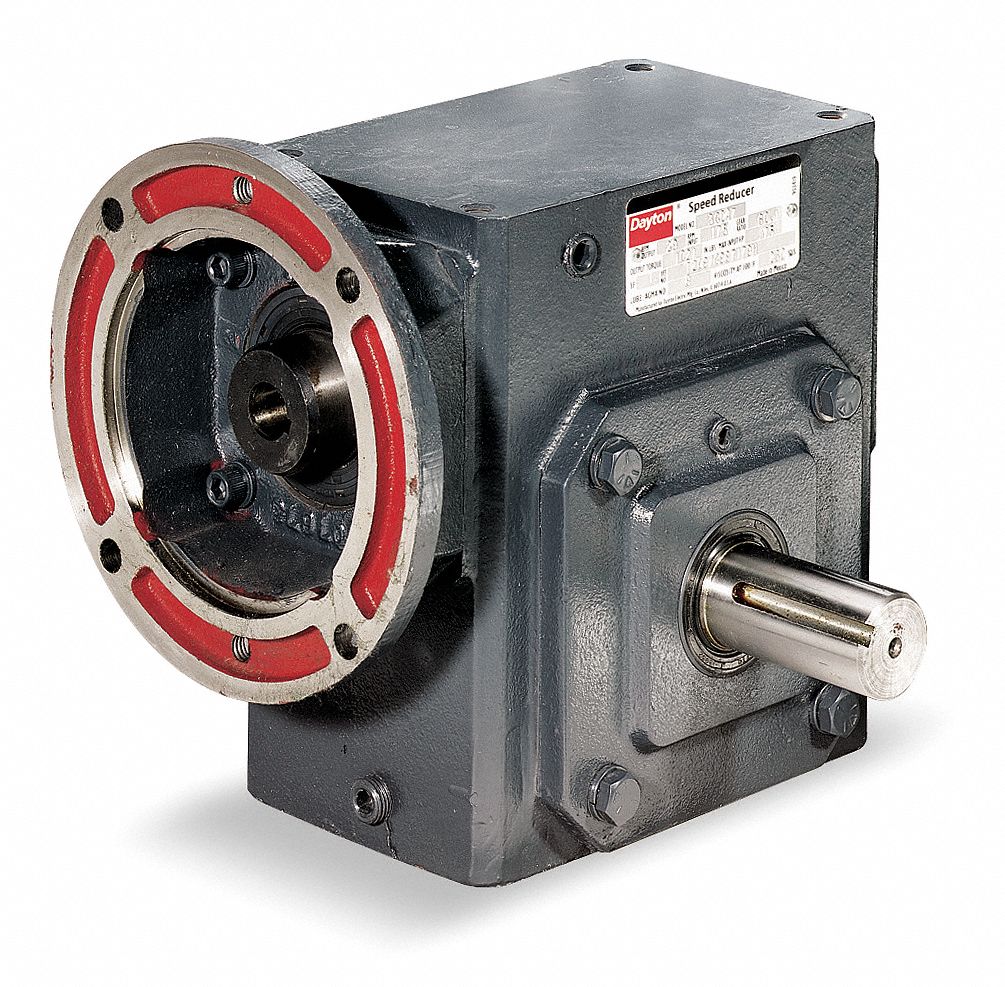

Speed Reducer Input Connection Type C-Face Gear Type Worm Output Shaft Type Keyed Maximum Output Speed 35 RPM Motor Frame Designation 56C Worm Center Distance 2.
62 in Gear Ratio 50 1 Rotation CW/CCW Maximum Input Horsepower 0.
75 hp Maximum Output Torque 895 in-lb Overhung Load Capacity 1 300 ft-lb Mounting Orientation Any Angle Housing Material Cast Iron Application Speed Reducer Bearing Type Ball Tapered Roller Gear Material Hardened Steel Manganese Bronze
Features
Extra Information
Processing Time:
2-3 days
