Description

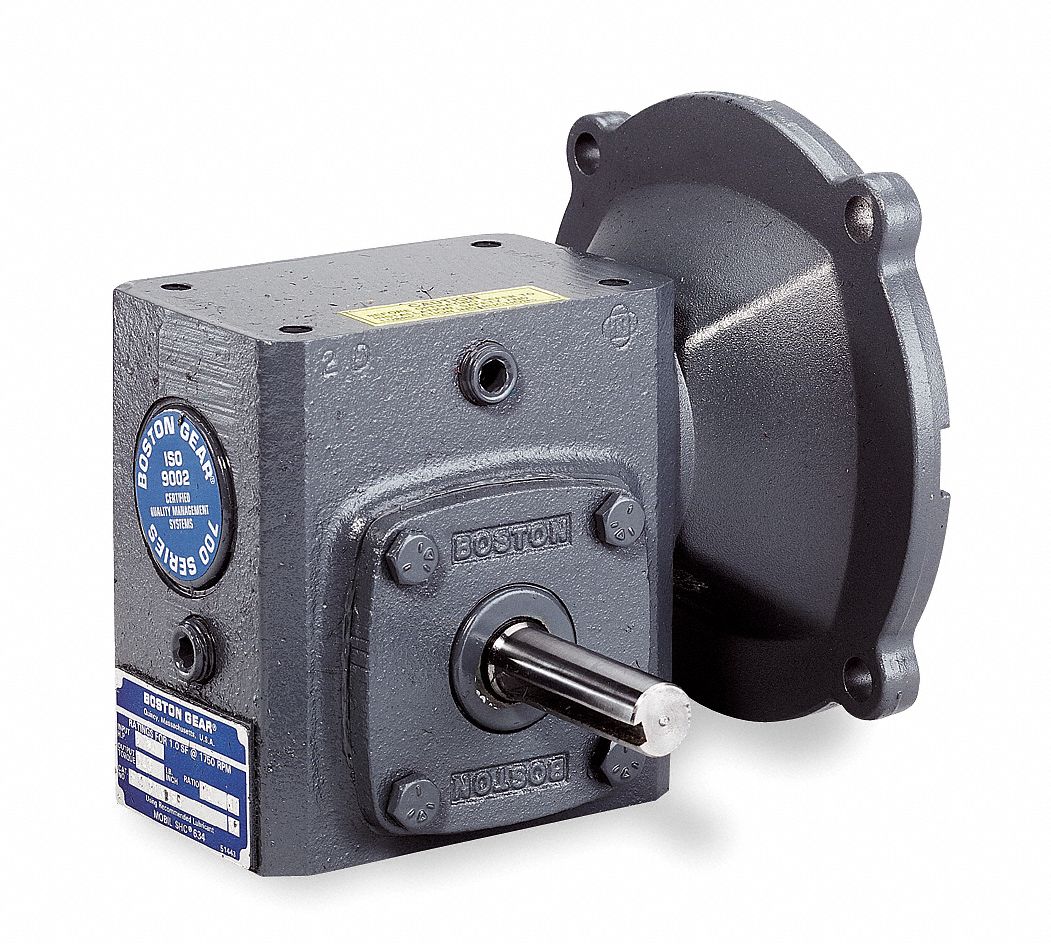

Speed Reducer Input Connection Type C-Face Gear Type Worm Output Shaft Type Round Maximum Output Speed 88 RPM Motor Frame Designation 56C Worm Center Distance 2.
06 in Base to Center 2.
28 in Gear Ratio 20 1 Rotation CW/CCW Maximum Input Horsepower 1 hp Maximum Output Torque 590 in-lb Overhung Load Capacity 700 ft-lb Mounting Orientation Any Angle Housing Material Cast Iron Bearing Type Tapered Roller Gear Material Hardened and Ground Steel
Features
Extra Information
Processing Time:
2-3 days
