Description

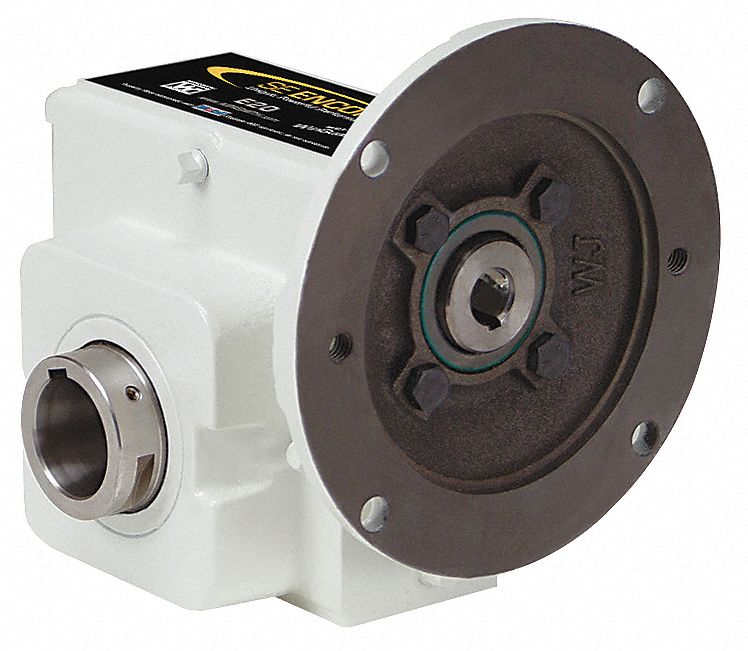

Speed Reducer Input Connection Type C-Face Output Shaft Type Hollow Maximum Output Speed 29 RPM Motor Frame Designation 56C/140TC Worm Center Distance 3.
5 in Base to Center 4 in Gear Ratio 60 1 Rotation CW/CCW Maximum Input Horsepower 2 hp Maximum Output Torque 3573 in-lb Overhung Load Capacity 3 186 ft-lb Mounting Orientation Any Angle Housing Material Finish Epoxy Coating System
