Description

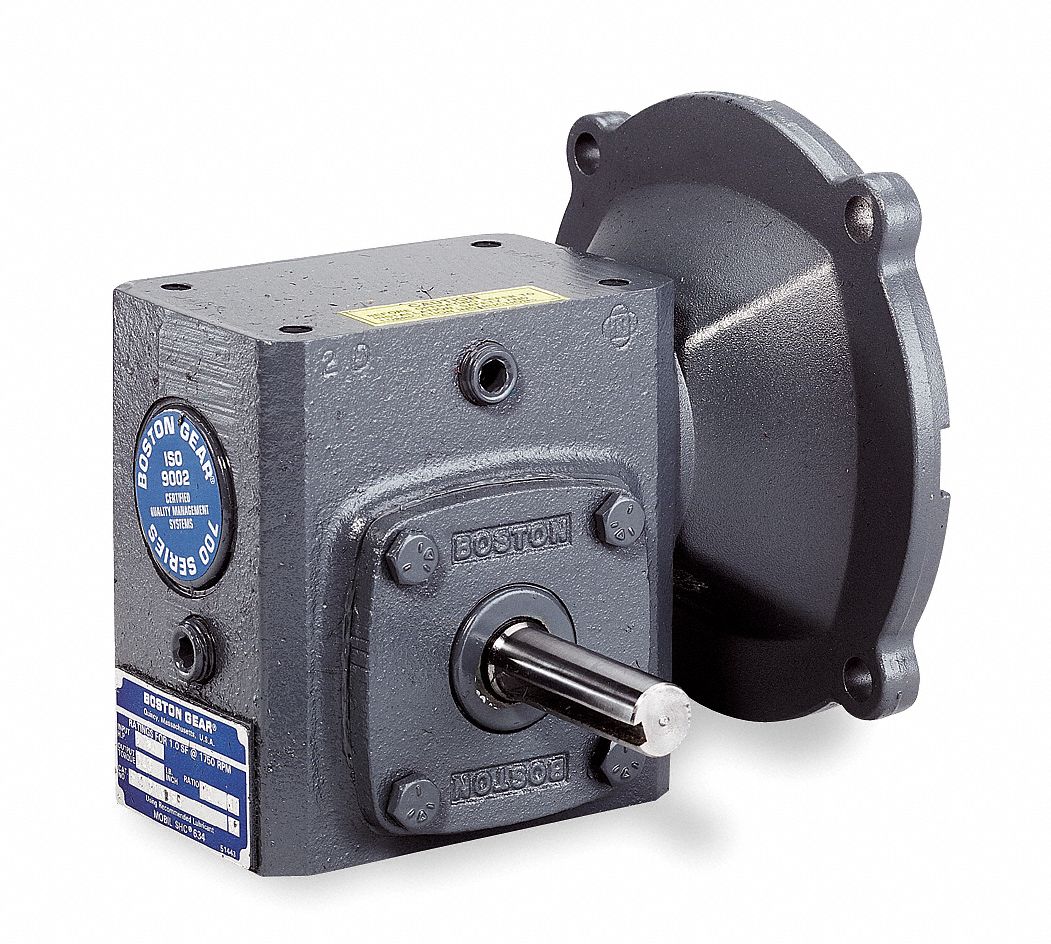

Speed Reducer Input Connection Type C-Face Gear Type Worm Output Shaft Type Round Maximum Output Speed 35 RPM Motor Frame Designation 180TC/210C Worm Center Distance 3.
75 in Base to Center 3.
88 in Gear Ratio 50 1 Rotation CW/CCW Maximum Input Horsepower 2.
3 hp Maximum Output Torque 3280 in-lb Overhung Load Capacity 2 000 ft-lb Mounting Orientation Any Angle Housing Material Cast Iron Bearing Type Tapered Roller Gear Material Hardened and Ground Steel
Features
Extra Information
Processing Time:
2-3 days
