Description

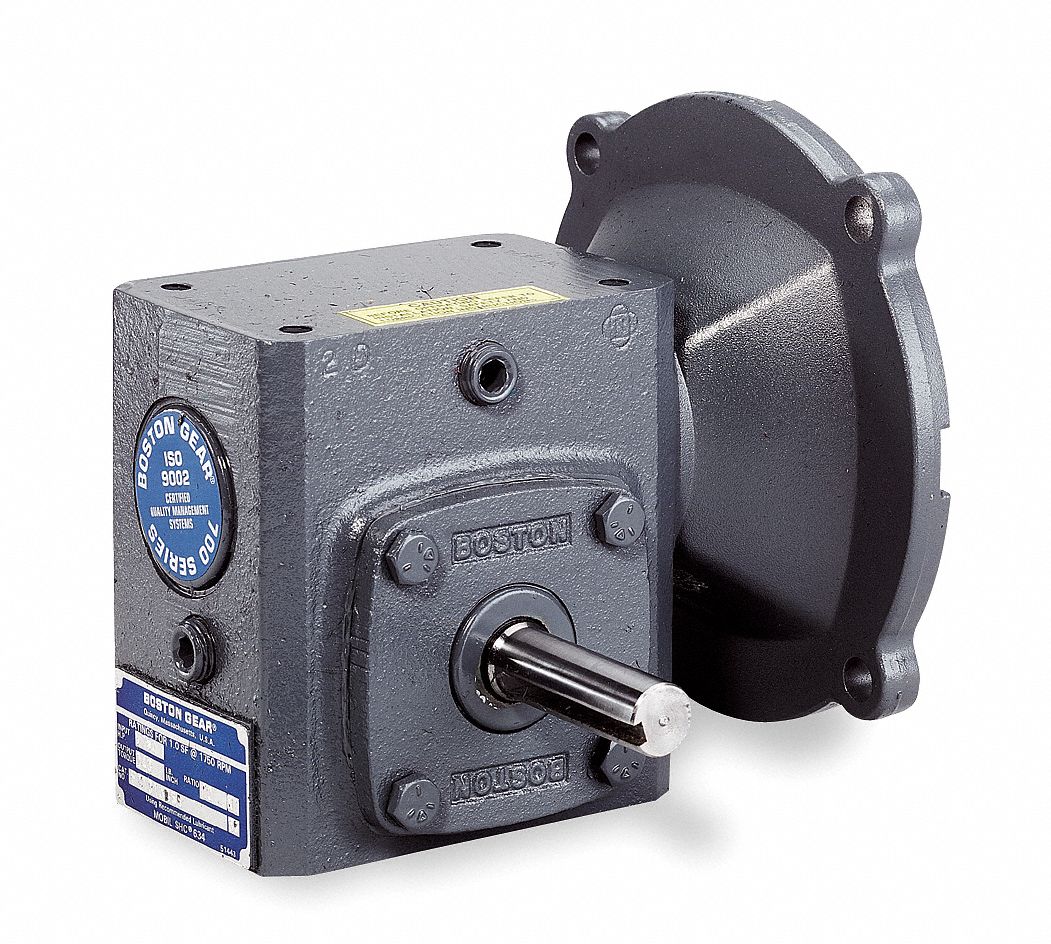

Speed Reducer Input Connection Type C-Face Gear Type Worm Output Shaft Type Round Maximum Output Speed 44 RPM Motor Frame Designation 140TC/180C Worm Center Distance 3.
25 in Base to Center 3.
5 in Gear Ratio 40 1 Rotation CW/CCW Maximum Input Horsepower 2 hp Maximum Output Torque 2131 in-lb Overhung Load Capacity 1 300 ft-lb Mounting Orientation Any Angle Housing Material Cast Iron Bearing Type Tapered Roller Gear Material Hardened and Ground Steel
Features
Extra Information
Processing Time:
2-3 days
