Description
Product Overview

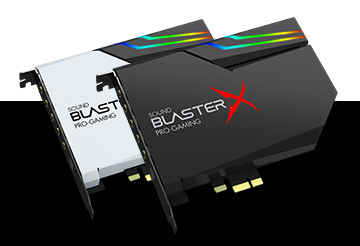

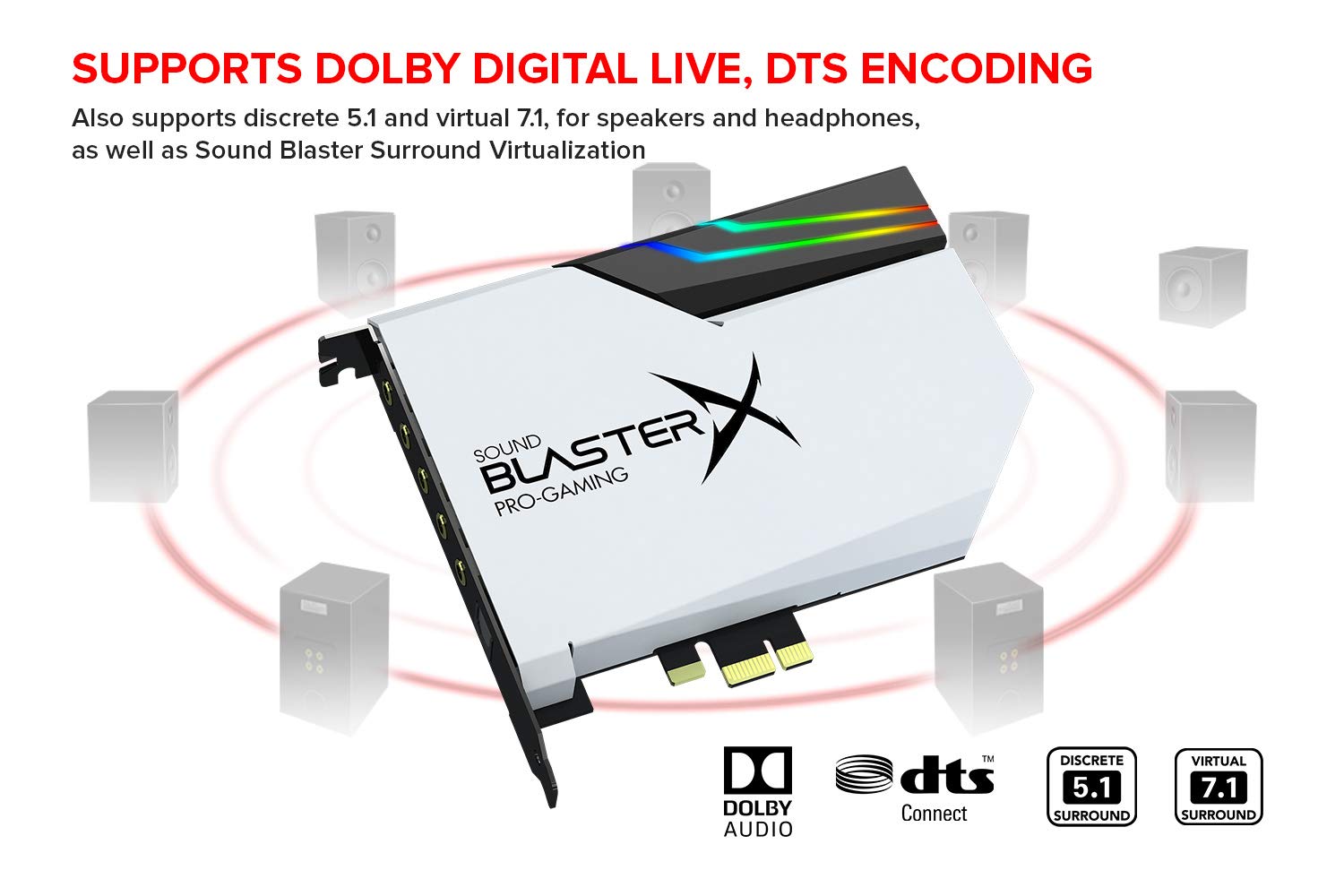

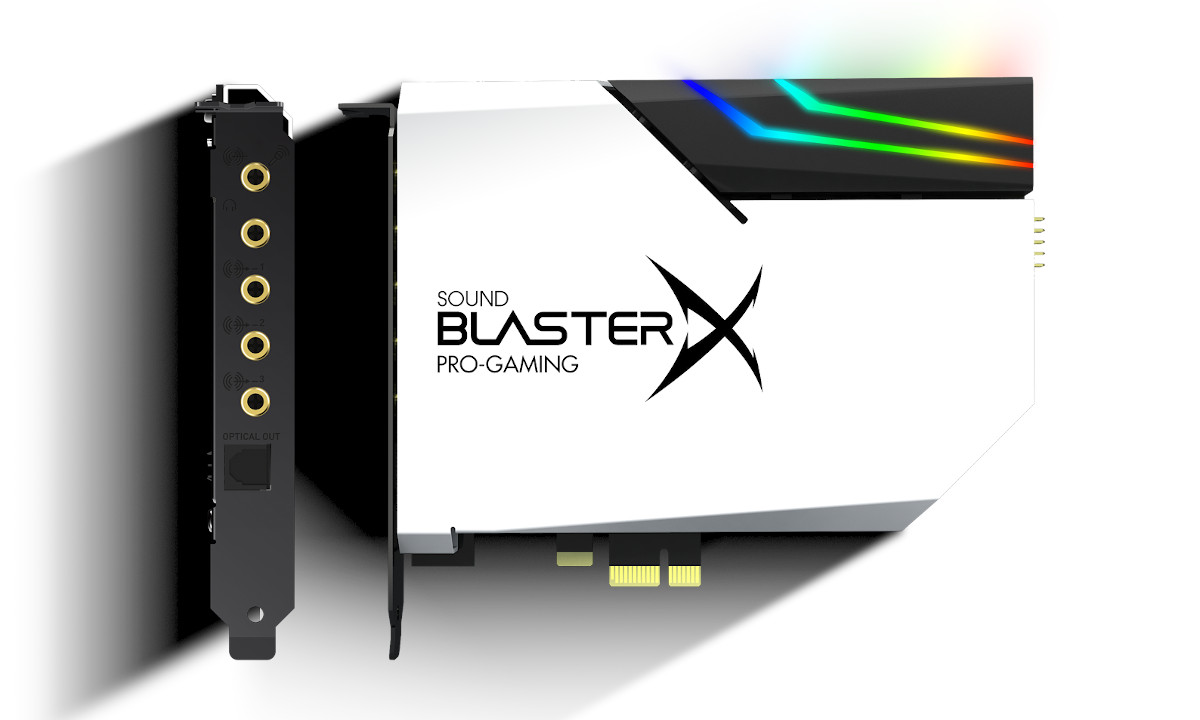

The Sound BlasterX AE-5 Plus Pure Edition is an advanced PCI-e sound card designed for gamers and audiophiles alike. With its high-quality audio technology and customizable RGB lighting, it delivers an immersive sound experience while enhancing the aesthetic of your gaming setup.
Key Features
- Sound Core3D audio technology for superior sound quality
- High Dynamic Range (DNR) of 122 dB for clear audio
- Multiple connectivity options including TOSLINK Optical Out and various audio jacks
- Support for headphone impedance ranging from 16Ω to 600Ω with low output impedance
- CrystalVoice technology for enhanced voice clarity in communication
- Compatible with major Windows operating systems (7, 8, 8.1, 10, 11)
- Dimensions: 145 x 20 x 128 mm for compact installation
- ASIO support for high-quality playback and recording
- Comes with customizable RGB lighting through Aurora lighting feature
Specifications
| Specification | Details |
|---|---|
| Interface/Power | PCI-e bus power, +5V for Aurora lighting (requires 4-pin molex peripheral connector from PC power supply) |
| Audio Technology | Sound Core3D |
| Dynamic Range (DNR) | 122 dB |
| Connectivity Options (Main) | 1 x TOSLINK Optical Out, 1 x 1/8" Mic In / Line In, 1 x 1/8" Headphone Out, 1 x 1/8" Front Out, 1 x 1/8" Rear Out, 1 x 1/8" Center / Sub Out, 1 x Front Panel Header |
| Headphone Amp | Output Impedance: 1Ω, Low Gain: 16—149 Ω (+0 dB), Supported Headphone Impedance: 16—600Ω |
| Audio Technologies | CrystalVoice |
| Supported Operating Systems | Windows® 7, 8, 8.1, 10, 11 |
| Dimensions | 145 x 20 x 128 mm |
| ASIO | Playback & Recording |
| Platform | PCI-e |
| Recommended Usage | Gaming |
| DAC | Dynamic Range: 122 dB, THD+N (DAC): 0.00032[%] |
System Requirements
- Intel® Core™ i3 or AMD® equivalent processor
- Intel, AMD, or 100% compatible motherboard
- Microsoft® Windows 11, Windows 10 32/64-bit, Windows 8.1/8.0 32/64-bit, Windows 7 32/64-bit
- 1 GB RAM
- >600 MB of free hard disk space
- Available PCI-e slot
Package Contents
- Sound BlasterX AE-5 Plus Pure Edition
- 4 x LED Strips (30 cm / 10 LEDs)
- 1 x Extension Cable
- Quick Start Leaflet
- Warranty Leaflet
Features
Specs
Country of Origin:
China
Manufacturer Name:
Creative
Manufacturer Part Number:
70SB174000003
