Description
Product Overview

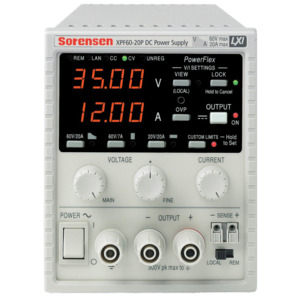

The Sorensen XPF Series bench power supply offers flexibility in voltage and current management, designed for both laboratory and ATE applications. Its innovative PowerFlex™ design allows for optimal performance at lower voltages with higher currents, catering to diverse testing requirements. The XPF60-20S model delivers a single output of 60V and 20A within a 420W power envelope, making it suitable for various electronic applications.

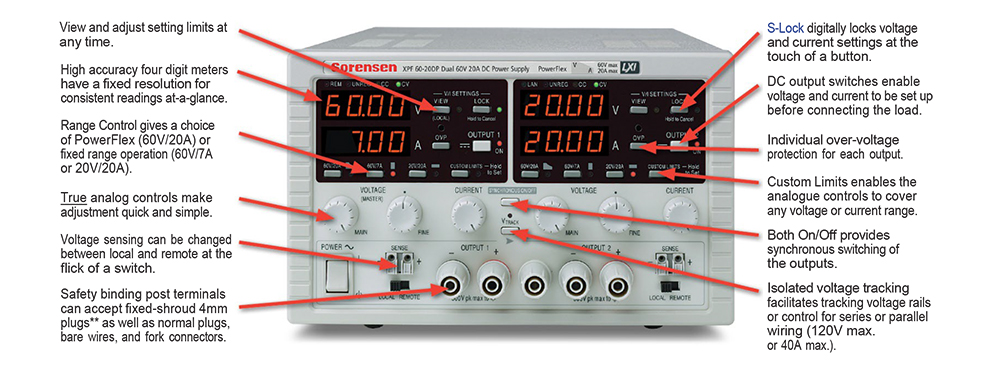

Key Features
- Flexibility in voltage and current selection
- PowerFlex™ design for high currents at lower voltages
- Dual-output with isolation for serial or parallel configuration (XPF60-20D)
- Advanced digital features with simple analog controls

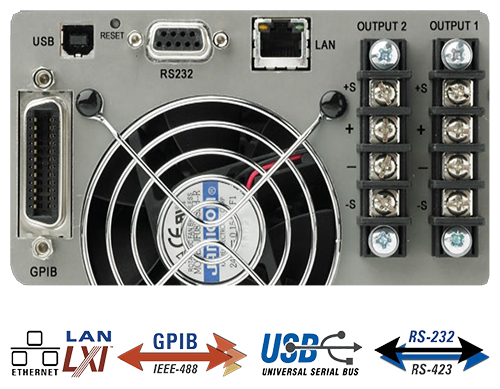

- Remote programming capability with multiple communication interfaces
- Over-voltage protection and remote/local sense options

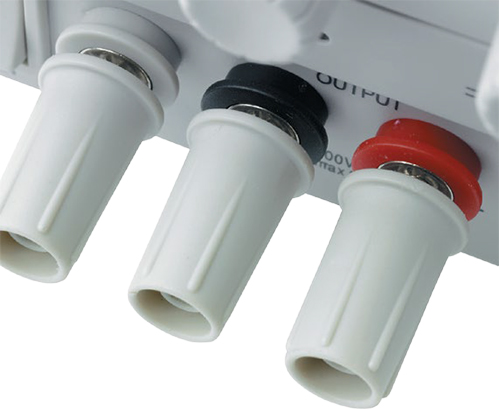

- Touch-proof safety terminals for secure connections
- Low noise operation with excellent dynamic response
Specifications
| Specification | Detail |
|---|---|
| Brand | Sorensen |
| Voltage Range Selector | 50-99.9 V |
| Output Voltage | 60 V |
| Current Range Selector | 20-29.9 A |
| Output Current | 20 A |
| Power Range Selector | 200-499 W |
| Power Rating | 420 W |
| Mounting Type | Bench Top |
| Input Voltage | 110-240 VAC |
| Series | XPF Series |
| Display | Digital |
| Interface | None |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Special Features | Constant Current, Constant Voltage, Remote Sense |
Features
Specs
Country of Origin:
string
Manufacturer Name:
Sorensen
Manufacturer Part Number:
XPF60-20S
