Description

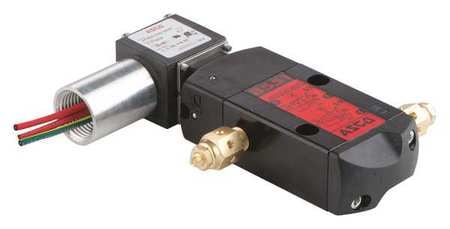

RED HAT WT8551A001MMS120/60 110/50DA - SOLENOID VALVE 3/2 TO 5/2 1/4 IN 120VAC - PILOT SOLENOID VALVE BODY MATERIAL BLACK ANODIZED ALUMINUM PIPE SIZE 1/4 IN.
ORIFICE DIA 1/4 IN.
COEFFICIENT OF VOLUME 0.
86 MIN OPERATING PRESSURE DIFFERENTIAL 30 PSI MAX OPERATING PRESSURE DIFFERENTIAL 150 PSI VOLTAGE 120VAC 60/50 HZ WATTS 6.
3 NEMA RATING 1 2 3 3S 4 4X COIL INSULATION CLASS F 3-WAY/2-POSITION TO 5-WAY/2-POSITION MOUNTING NAMUR MAX FLUID TEMP 140 DEGREES F OVERALL LENGTH 7-9/16 IN.
OVERALL WIDTH 1-3/4 IN.
- EQUAL TO 24W622
Features
Specs
Manufacturer Name:
RED HAT
Manufacturer Part Number:
WT8551A001MMS120/60 110/50DA
