Description

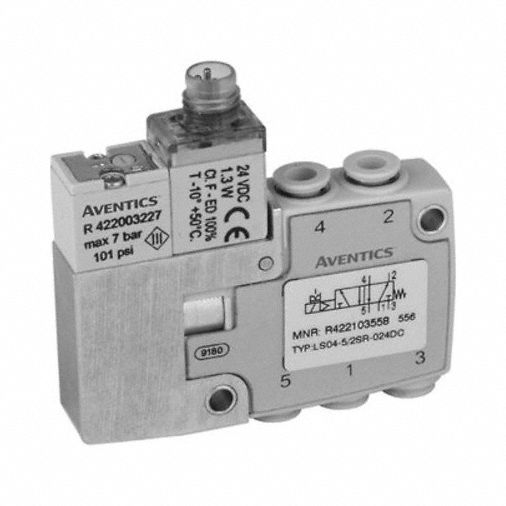

Solenoid-Operated Directional Control Valve Valve Ways and Positions 5-Way/2-Position Voltage 24VDC Valve Actuator / Return Solenoid / Spring Pipe Size 4 mm Operational Pressure Range 3 to 7 bar Body Style Single Unit 3-Pin Plug Electrical Connections Shifting Technology Solenoid/Pilot Power Consumption 1.
3 W Ambient Temp Range -10 Degrees to 50 Degrees C Override Manual with Detent Manual without Detent Overall Height 51 mm Overall Length 54 51/64 mm Overall Width 10 51/64 mm- Alternate Part Numbers- 807U16- R422103558
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
FR
Manufacturer Name:
R422103558
Manufacturer Part Number:
AVENTICS
