Description

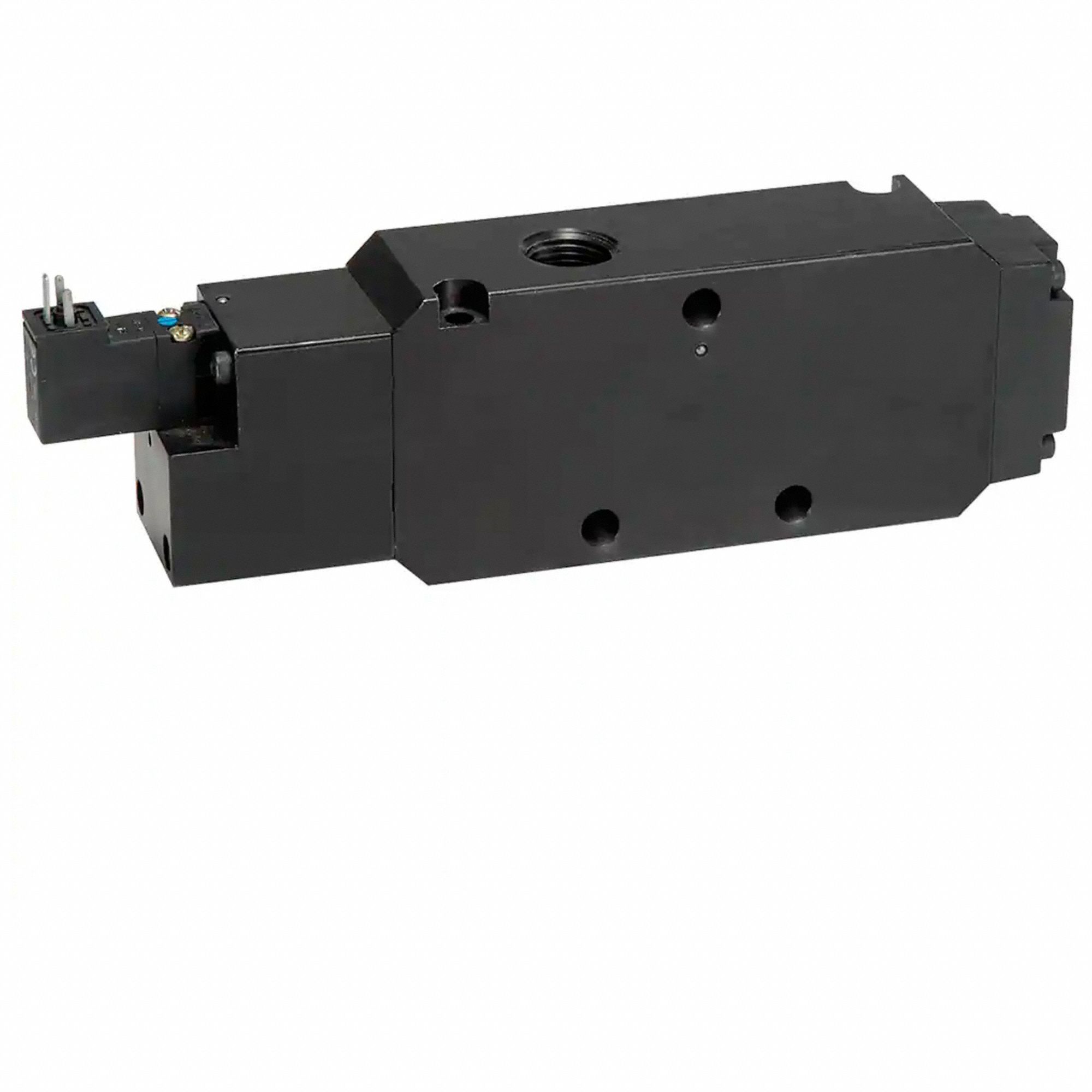

Solenoid Air Control Valve Valve Ways and Positions 3-Way/2-Position Voltage 120V AC Valve Actuator / Return Solenoid / Spring Pipe Size 1/2 in Max CFM - Valves 5.
9 cfm Operational Pressure Range 35 to 145 psi NEMA Classification NEMA 4 Valve Vacuum Range 0 to 28 in Hg Normally Closed Body Style Body Ported Pilot Port Size 1/2 in NPT Coefficient of Volume 5.
9 15mm 3-Pin Male DIN Electrical Connections Ambient Temp Range 5 Degrees to 120 Degrees F Override Non-Locking Flush
Features
Extra Information
Processing Time:
2-3 days
