Description

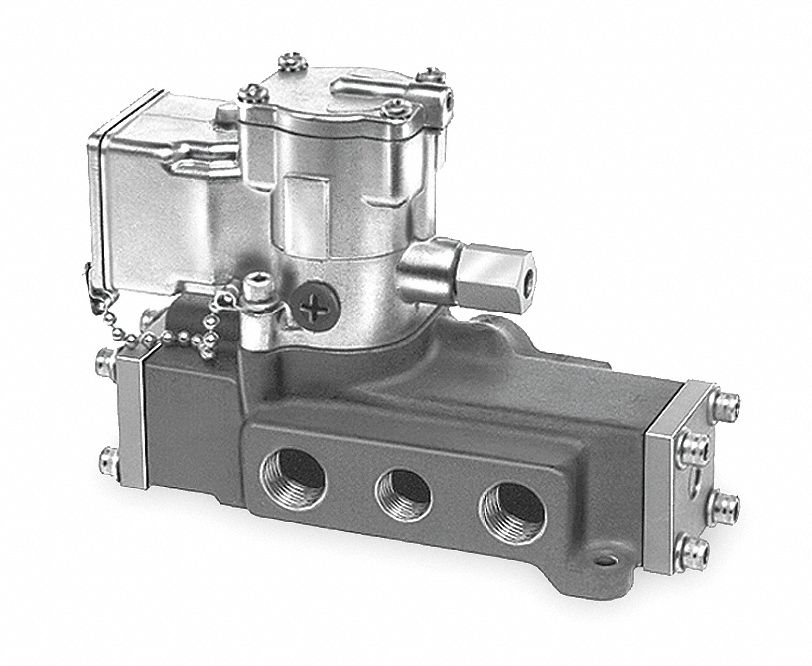

Solenoid Air Control Valve Valve Ways and Positions 4-Way/2-Position Voltage 24V DC Valve Actuator / Return Solenoid / Spring Pipe Size 1 1/4 in Max CFM - Valves 4.
8 cfm Operational Pressure Range 35 to 145 psi NEMA Classification NEMA 1 12 Body Style Body Ported Pilot Port Size 1-1/4 in x 1-1/4 in NPT Coefficient of Volume 12 Plug-In Electrical Connections Ambient Temp Range 0 Degrees to 125 Degrees F Override Locking Overall Height 6 1/2 in Overall Length 10 1/2 in
Features
Extra Information
Processing Time:
2-3 days
