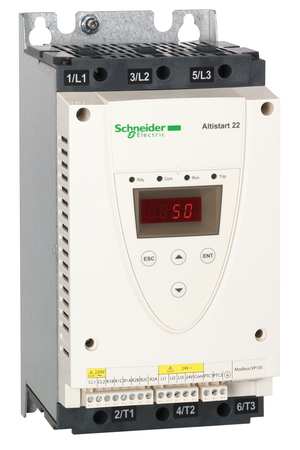

SCHNEIDER ELECTRIC ATS22D47S6U - SOFT START 208-600VAC 47A 3 PHASE - SOFT START INPUT VOLTAGE 208 TO 600VAC OUTPUT CURRENT 47A WITH BYPASS 15 HP @ 3 PHASE - 240V 30 HP @ 3 PHASE - 480V 3 LOGIC INPUTS 1 PTC PROBE ANALOG INPUT 2 (NC/NO) RELAY OUTPUTS INPUTS/OUTPUTS PHASE 3 ENCLOSURE RATING NEMA 1 40 HP @ 3 PHASE - 575V OUTPUT VOLTAGE 208 TO 600VAC CONTROL VOLTAGE 120VAC IP RATING 20 RAMP TIME 3.
5 IN FOR 40 SECONDS FROM COLD WITH S1 MOTOR DUTY 3.
5 IN FOR 20 SECONDS WITH S4 MOTOR DUTY BASED ON A LOAD FACTOR OF 95 PERCENT - EQUAL TO G3529714
Features
Specs
Manufacturer Name:
SCHNEIDER ELECTRIC
Manufacturer Part Number:
ATS22D47S6U
