Description

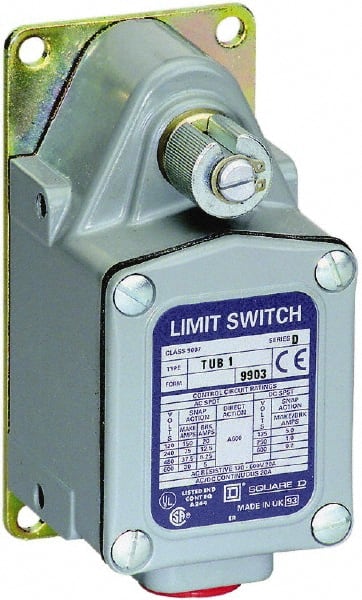

SQUARE D 9007TUB1 - SEVERE DUTY LMT SWTCH SIDE ACTUATOR SPDT - SEVERE DUTY LIMIT SWITCH ROTARY HEAD NO LEVER SIDE ELECTRICAL CONNECTION SCREW TERMINALS 1/2 IN.
-14 NPT CONDUIT WIRING ENTRY CONTACT FORM SPDT 20 AMPS VOLTAGE RATING 600AC/DC NEMA RATING 1 2 4 12 13 IP RATING 67 MOVEMENT CW TRAVEL 880 SERIES SQUARE D 9007T/FT OPERATING TEMP RANGE -10 DEGREES TO 185 DEGREES F BODY MATERIAL ZINC WIDTH 2.
25 IN.
HEIGHT 4.
66 IN.
DEPTH 2.
44 IN.
OPERATING FORCE 12 IN.
-LB.
STANDARDS UL CSA CE - EQUAL TO 5B056
Features
Specs
Manufacturer Name:
SQUARE D
Manufacturer Part Number:
9007TUB1
