​Servo Stepper Motor 6A 2Phase 34 12N M Closed Loop

Servo Motor Stepper Motor 6A 2Phase Name 34 12N m Closed Loop Hybrid Servo Driver Controller CNC Kit

About This Product
This VEVOR 2-phase stepper motor adopts new control technology to prevent the loss of movement synchronization and ensure accuracy. Load-based current control technology can effectively reduce the temperature rise of motor and prolong motor service life. With the stepper motor, you will find it easy to solve uneven extrusion problems, regularly plugging, and material reloading.

Highlights

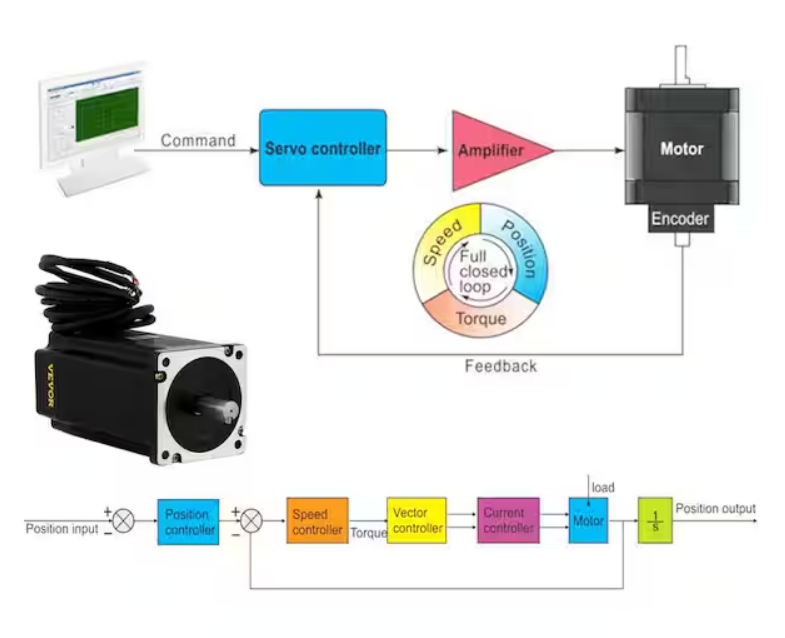

Full closed-loop control: stepping closed-loop circuit system, no loss of movement synchronization, motor runs smoothly, vibrates mildly, and improves acceleration deceleration dynamic performance
Protective function: stepper motor driver supports over current protection, over voltage protection, insulation class B

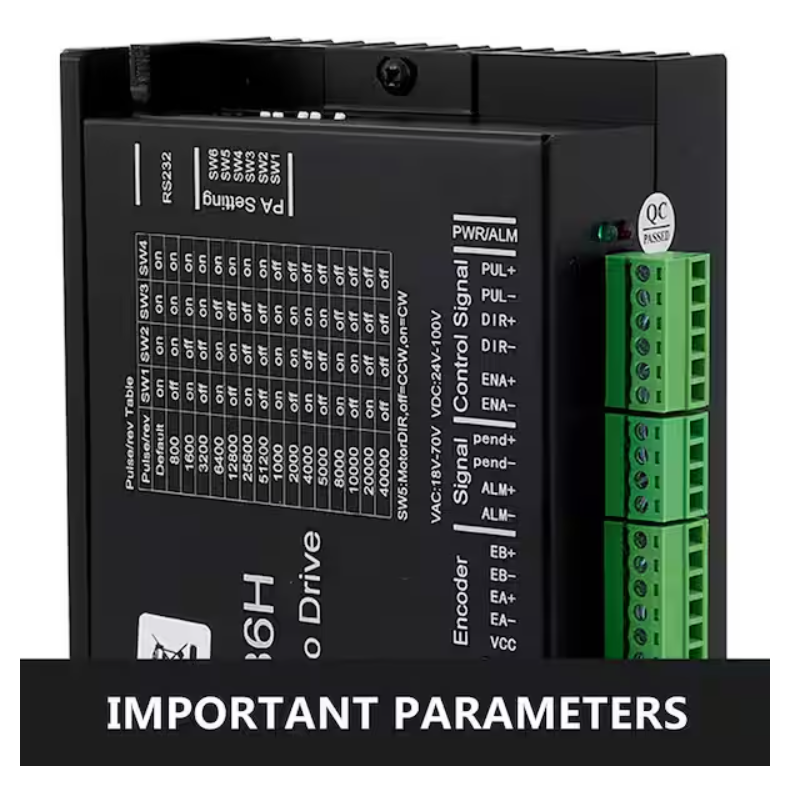

Main parameters: motor has torque 12N.m, contin uous current 6 Amp shaft length: 3.8 cm (1.5 in.), shaft width: 1.5 cm (0.59 in.), DC resistance (plus/minus 10%): 0.8Ω, phase inductance (plus/minus20%): 6mH, insulation resistance: 100MOhm (500VDC)
High-speed response: especially for short-distance, short-time, fast start-stop and zero-speed stable stop
Various application: durable material frame for long life using with desktop CNC routers, small CNC mills, laser cutters/engravers, dental mills, electronic assembly andinspection equipments, labeling equipments
Continuous voltage: 24-Volt to 100-Volt DC, step angle: 1.8
DC resistance (plus/minus10%): 0.8Ω, phase inductance (plus/minus20%): 6mH
Insulation resistance: 100MOhm (500-Volt DC), insulation class B, encoder resolution: 1000 line

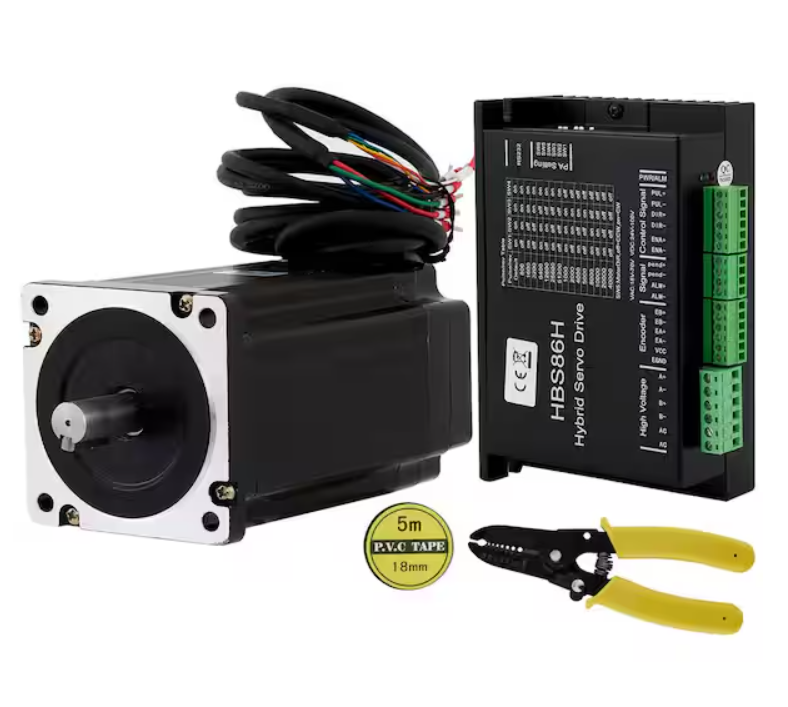

Package content: 1 x hybrid closed-loop stepper motor, 1 x stepper driver, 1 x encoder cable, 1 x power cable
Click here for more information on Electronic Recycling Programs
Return Policy
Product Information
Internet # 323489413
Model # BJDJ86HS156ESBH12V9

Dimensions
Product Depth (in.)

4.3 in

Product Height (in.)

6.1 in

Product Width (in.)

2.1 in

Details
Amperage (A)

6 A

Horsepower (hp)

0.02 hp

Product Weight (lb.)

12 lb

Voltage (V)

30 V
